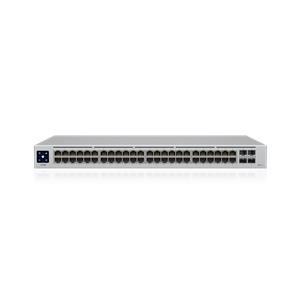

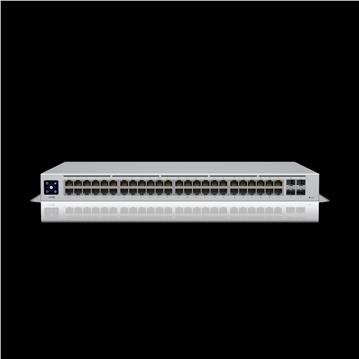

USW-48-PoE is 48-Port managed PoE switch with (48) Gigabit Ethernet ports including (32) 802.3at PoE+ ports, and (4) SFP ports. Powerful second-generation UniFi switching.
Proizvođač: | Ubiquiti Networks |
Šifra: | 1388726 |
Kataloški broj: | USW-48-POE-EU |
Jamstvo: | 24 |
Raspoloživost: | (Dobavljivo) |
Prosječna ocjena: 0,00 | Glasova: 0 |
Ocijeni
ovaj proizvod
|
**kod nonSEPA transakcija naplaćujemo naknadu banke
već od 22,10 €/mjesečno
Odabrali ste prikaz cijena za gotovinsko plaćanje - prikaži MPC
USW-48-PoE is 48-Port managed PoE switch with (48) Gigabit Ethernet ports including (32) 802.3at PoE+ ports, and (4) SFP ports. Powerful second-generation UniFi switching.
Switch 48 PoE
In Stock
SKU: USW-48-PoE-EU
Summary
Datasheet
Installation Guide
A 48-port, Layer 2 PoE switch with a silent, fanless cooling system.
Features:
(32) GbE, PoE+ RJ45 ports
(16) GbE RJ45 ports
(4) 1G SFP ports
195W total PoE availability
1.3" LCM color touchscreen with AR switch management
Mechanical
Dimensions 442.4 x 285 x 43.7 mm (17.42 x 11.22 x 1.72")
Weight Without mounting brackets: 4.52 kg (9.97 lb)
With mounting brackets: 4.61 kg (10.16 lb)
Enclosure material SGCC steel
Hardware
Networking interface (48) 10/100/1,000 RJ45 ports
(4) 1G SFP Ethernet ports
Management interface Ethernet In-Band
Total non-blocking throughput 52 Gbps
Switching capacity 104 Gbps
Forwarding rate 77.38 Mpps
Power method 100—240V AC, 50/60 Hz, universal input
Power supply AC/DC, internal, 240W
Supported voltage range 100—240V AC
Max. power consumption 45W (Excluding PoE output)
ESD/EMP protection Air: ± 16kV, contact: ± 12kV
Shock and vibration ETSI300-019-1.4 Standard
Operating temperature -5 to 40° C (23 to 104° F)
Operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
LEDs
System Status
Ethernet PoE
Speed/link/activity
SFP+ Link/activity
PoE
Total available PoE 195W
PoE interfaces
Ports 1-32
PoE/PoE+ (Pins 1, 2+; 3, 6-)
Max. PoE wattage per port by PSE
PoE+
32W
Voltage range PoE mode 44—57V
Voltage range PoE+ mode 50—57V
Zaštita PGR 5 godina (2+3) - 60,00 € |
Osnovne karakteristike | |
---|---|
Portova: | 48 |
Brzina prijenosa podataka: | 1 Gbps |
Kućište: | Ugradbeno 1U |
POE: | Da |
Konektori | |
SFP: | 4 |
