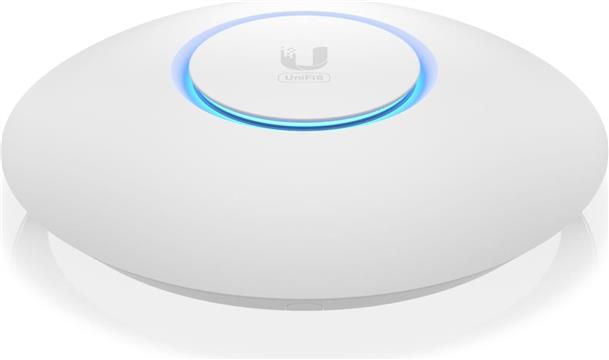

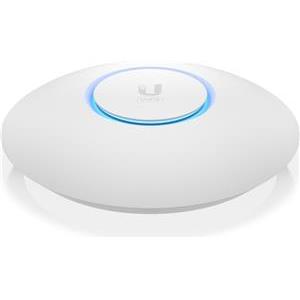

- Compact, dual-band WiFi 6 access point with 2x2 MIMO and OFDMA functionality
- The Access Point WiFi 6 Lite (U6 Lite) is a 2x2 WiFi 6 access point that can reach an aggregate throughput rate up to 1.5 Gbps with its 5 GHz (MU-MIMO and OFDMA) and 2.4 GHz (MIMO) bands
- The U6 Lite can either be ceiling-mounted to broaden signal coverage and support device-dense networks, or it can be mounted to a wall to extend its signal in a specific direction
- The compact U6 Lite also sports the same form factor as the Access Point nanoHD (UAP nanoHD) so you can repurpose its covers and recessed mounting bracket if you already own them
- The U6 Lite simplifies the process of bringing WiFi 6 to your home or office
- It can be set up in minutes and fully managed with the UniFi Network web application or mobile app

Features
- High-efficiency 2x2 WiFi 6 (802.11ax)
- 5 GHz band (2x2 MU-MIMO and OFDMA) with 1.2 Gbps throughput rate
- 2.4 GHz band (2x2 MIMO) with 300 Mbps throughput rate
- Powered by 802.3af PoE (PoE injector sold separately)
- Fits UAP nanoHD covers and the recessed mounting bracket

Specifications
HARDWARE
- Managementinterfaces: Ethernet, Bluetooth
- Networking interface: 1× GbE RJ45 port
- Button: Factory reset
- LEDs: White/blue
- Power method: 802.3af PoE, passive PoE (48V)
- Power supply:
* 802.3af PoE
* 48V, 0.32A PoE adapter (optional)
- Supported voltage range: 44 to 57VDC
- Max. power consumption: 12W
- Max. TX power:
* 2.4GHz: 23 dBm

* 5GHz: 17 dBm

- MIMO:
* 2.4GHz: 2x2

* 5GHz: 2x2
- Throughput rate:
* 2.4GHz: 300 Mbps

* 5GHz: 1201 Mbps
- Antenna gain:
* 2.4GHz: 2.8 dBi

* 5GHz: 3 dBi
- Operating temperature: -30C to 60C (-22F to 140F)
- Operating humidity: 5% - 95% noncondensing
- Certications: CE, FCC, IC

SOFTWARE
- WiFi standards:
* 802.11a/b/g
* WiFi 4/WiFi 5/WiFi 6
- Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
- BSSID: 8 per radio
- VLAN: 802.1 Ohm
- Advanced QoS: Per-user rate limiting
- Guesttrafc isolation: Supported
- Concurrent clients: 300+

SUPPORTED DATA RATES
- 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11b: 1, 2, 5.5, 11 Mbps
- 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11n (WiFi 4): 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
- 802.11ac (WiFi 5): 6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
- 802.11ax (WiFi 6): 7.3 Mbps to 1.2 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80)

MECHANICAL
- Dimensions: fi 160×32.65 mm
- Weight Without mount: 300 g
- With mount: 315 g
- Enclosure materials: Polycarbonate, aluminum
- Mounting materials: Polycarbonate, SGCC steel
