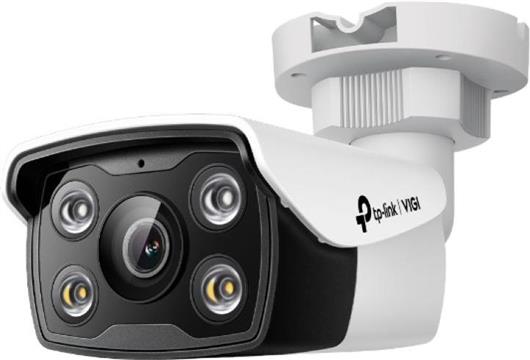

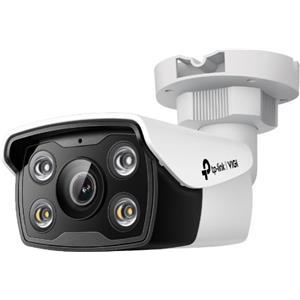

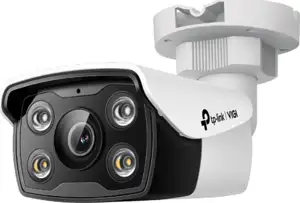

Super High Resolution with 5 Megapixels: The camera is equipped with 5 Megapixels – more than enough pixels to capture some more discreet details.24-hour full color: Get 24-hour color details , even in dark conditions, with a large-aperture lens, a high-sensitivity sensor and additional lights included.People and vehicles classification: separates people and vehicles from other objects so that you receive more accurate event notifications.Smart detection: Actively detects unusual events such as trespassing and line crossing and sends you instant notifications.People and vehicle analytics: Quickly find people and vehicles of interest by a range of attributes, allowing you to improve efficiency searches.Active defense: Instantly alert potential intruders with sound and light when unusual events occur.Two-way audio: With voice intercom support, you can have two-way conversations while viewing the feed from anywhere. Waterproof IP67: Reliable IP67 for stable outdoor operation.H.265+: Compress video size without sacrificing video quality, lighten network load and save disk space.Smart video enhancement: Professional VIGI technologies process videos , to greatly improve their quality, which is critical to your monitoring, including Smart IR, True WDR, 3D DNR and Night Vision.Flexible management and storage: Take full control of your security through four management modes: online UI, NVR UI, VIGI App and VIGI Security Manager. Local memory is available for each method, as well as built-in memory with an SD card slot (up to 256 GB)
CAMERAImage sensor 1/2.7” CMOS with progressive scanShutter speed 1/3 to 1/10000 sSlow shutter YesMinimum illumination 0.005 lux; 0 lux with IR/white lightDay/night mechanism IR Cut FilterDay/night switching unified/scheduled/automaticLENSLens type with fixed focusFocal length 4mmAperture F1.6FOV 4mm:Horizontal angle of view: 90°, Vertical angle of view: 48°, Diagonal angle of view: 107 °Lens Mount M12*P 0.5DORI Distance 4mmDetection: 80m (262ft)Observe: 33m (109ft) Identify: 16m (52 ??feet)Identification: 8m (26 feet)ANGLE ADJUSTMENT (MANUAL)Pan Range: 0° to 360° , Tilt: 0° to 90°, Rotation: 0° to 360°ILLUMINATORIR LED Quantity: 2Range: 30mWavelength : 850nmWhite LED Quantity: 2Range: 30mIlluminator On/Off Control Auto/Scheduled/Always On/Always OffVIDEOmax. Resolution 2880 X 1620Main Stream Frame Rate:50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps br /Resolution:2880x1620, 2688x1520, 2304x1296, 2048x1280, 1920x1080,1280x720Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20 frames per second.Substream Frame Rate:50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fpsResolution:704x576,640x480, 352x288, 320x240 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20 frames per second.Bitrate control CBR, VBRVideo compression Main stream : H.265+/H.265/H.264+/H.264Sub Stream: H.265/H.264Type H.264 Main Profile/High ProfileMain Supported stream H.264+Main profile type H.265?H.265+? main stream supportedVideo bit rate Main stream: 256 Kbps to 6 MbpsSub stream: 64 Kbps to 512 KbpsPICTURE Picture Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Infrared Overexposure Prevention, HLC, adjustable via client softwareImage Enhancement BLC/3D DNR/HLC/SmartIR Wide Dynamic Range 120dBSNR ? 52dBPicture Parameter Switch YesPrivacy Mask Up to 4 MasksROI 1 RegionOSD Setup YesAUDIOAudio communication Two-way audioAudio input YesAudio output YesSound compression YesSound sampling rate 8KHzEnvironmental filtering noise YesAudio bit rate 64 Kbps (G.711 alaw)NETWORKProtocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLSONVIF YesAPI Open Network Video Interface (Profile S)Simultaneous live viewing 3 main streams and 3 sub streamsClient VIGI application, VIGI security managerWeb browser Google Chrome® 57 and aboveFirefox® 52 and aboveSafari® 11 and aboveMicrosoft® Edge 91 and above Cloud YesSecurity Password Protection, HTTPS Encryption, IP Address Filter, Authenticity ReviewALARM AND EVENT MANAGEMENTSmart Event People and Vehicle Classification, Area Intrusion Detection , line crossing detection, people detection, vehicle detection, region entry detection, region exit detection, abandoned object detection, object removal detection, lying down detection, scene change detectionBasic event motion detection, video tamper detection, exception (illegal login), scene change detectionLink to alarm, video recording to memory card, send messages, sound warning, flashing white lightConnection method N/ANotification output Push messageDEEP LEARNING FEATUREPeople and Vehicle Analytics Search and filter people or vehicles of interest based on many different attributes, making your event search faster and easier.Multi-Target-Type Detection supports simultaneous detection and capture of human body and vehicleFace capture not availableFace comparison N/AINTERFACESNetwork interface 1 RJ45 10/100M self-adaptive Ethernet port, PoEAlarm N/AReset button YesPower supply DC Power PortBuilt-in storage, built-in memory card slot, MicroSD card support, up to 256 GBBuilt-in microphone Yes; Records everything that happens within 15 ft of the cameraBuilt-in speaker YesAudio is not availableGENERALOperating temperature -30-60 ° CStorage temperature -40-60°COperating humidity 95% or less (non-condensing)Storage humidity 95% or less (non-condensing)Package contents Network camera VIGIQuick start guideWaterproof cable connectorsMounting accessoriesMaterial PlasticPower supply 12V DC ± 5%, max. 9 W, 5.5 mm coaxial power plugPoE: 802.3at, class 0, max. 10.5 WProtection IP67Product dimensions (L x W x H) 78.42 × 186.88 × 71.55 mmCertificates CE, NTRA, VCCI, KC, BSMI, FCC, IC
