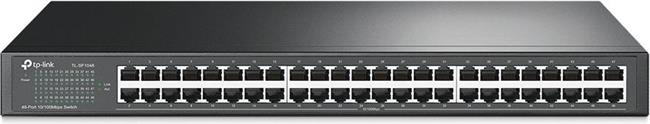

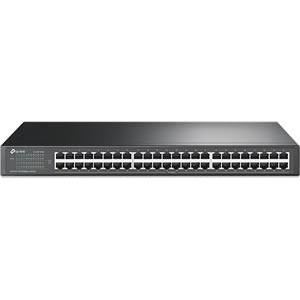

TP-Link TL-SF1048 48-port Unmanaged Switch, 48×10/100M RJ45 ports, 1U 19" Rack-mountable steel case
| Proizvođač: | TP-Link |
| Šifra: | 0190444 |
| Kataloški broj: | TL-SF1048 |
| Jamstvo: | 24 |
| Raspoloživost: |
(Dobavljivo)
|
Prosječna ocjena:
0,00
| Glasova:
0
|
| Ocijeni
ovaj proizvod
|
115,00 €
**kod nonSEPA transakcija naplaćujemo naknadu banke
već od 3,55 €/mjesečno
Odabrali ste prikaz cijena za gotovinsko plaćanje - prikaži MPC
Features
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for half-duplex mode
- Supports MAC address auto-learning and auto-aging
- LED indicators for monitoring power, link, activity, 100Mbps
- Standard 19" Rack-mountable steel case
- Internal universal power supply
Specifications
- Standards and Protocols: IEEE802.3, 802.3u, 802.3x, CSMA/CD, TCP/IP
- Basic Function:
* Wire-speed Performance
* MAC Address Auto-Learning and Auto-aging
* IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode
- Backbound Bandwidth: 9.6Gbps
- MAC Address Table: 8k
- Forwarding Rate:
* 10BASE-T: 14880pps/port
* 100BASE-TX: 148800pps/port
- Transmission Method: Store-and-Forward
- Ports: 48× 10/100Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
- Network Media:
* 10Base-T: UTP category 3, 4, 5 cable (max. 100m); EIA/TIA-568 100 Ohm STP (max. 100m)
* 100Base-Tx: UTP category 5, 5e cable (max. 100m); EIA/TIA-568 100 Ohm STP (max. 100m)
- LED Indicators: Power, Link/Act, 100Mbps
- Safety & Emission: FCC, CE
- Dimensions (W×D×H): 440×260×44 mm
- Environment:
* Operating Temperature: 0C - 40C (32F - 104F)
* Storage Temperature: -40C - 70C (-40F - 158F)
* Operating Humidity: 10% - 90% non-condensing
* Storage Humidity: 5% - 90% non-condensing
- Power: 100-240VAC, 50/60Hz
TL-SF1048
48-Port 10/100Mbps Rackmount Switch
48 10/100Mbps RJ45 ports
Innovative energy-efficient technology saves power up to 50%
Supports MAC address self-learning and auto MDI/MDIX
Standard 19-inch rack-mountable steel case
HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Interface 48 10/100Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity Fanless
Physical Security Lock No
Power Supply 100-240VAC, 50/60Hz
Power Consumption Maximum: 9.9W
Dimensions ( W x D x H ) 17.3*7.1*1.7 in. (440*180*44 mm)
Mounting Rack Mountable
Max Power Consumption 9.9W(220V/50Hz)
Max Heat Dissipation 33.78BTU/h
PERFORMANCE
Switching Capacity 9.6Gbps
Packet Forwarding Rate 7.14Mpps
MAC Address Table 8K
Advanced Functions Green Technology
802.3X Flow Control
Green Technology Innovative energy-efficient technology saves power up to 50%
Transfer Method Store-and-Forward
OTHERS
Certification FCC, RoHS
Package Contents 48-Port 10/100Mbps Rackmount Switch
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet
System Requirements Microsoft® Windows® XP, Vista™, Windows 7 or Windows 8, MAC® OS, NetWare®, UNIX® or Linux.
Environment Operating Temperature: 0?~40? (32?~104?);
Storage Temperature: -40?~70? (-40?~158?);
Operating Humidity: 10%~90% non-condensing;
| Zaštita PGR 5 godina (2+3) - 20,00 € |
| Osnovne karakteristike | |
|---|---|
| Portova: | 48 |
| Brzina prijenosa podataka: | 100 Mbps |
| Kućište: | Ugradbeno 1U |
| POE: | Ne |
| Konektori | |
| SFP: | Ne |
*Unatoč uloženom trudu da damo što bolji i točniji opis, slike i specifikacije, ne možemo garantirati da su svi navedeni podaci točni te ne odgovaramo za eventualne pogreške nastale u opisu proizvoda, slika ili specifikacija. Iste je potrebno provjeriti na stranicama proizvođača ili pošaljite upit našim djelatnicima da provjere.
Ukoliko na našoj stranici otkrijete neistinite odnosno neadekvatne informacije, molimo vas da nam to javite na prodaja[o]protis.hr
