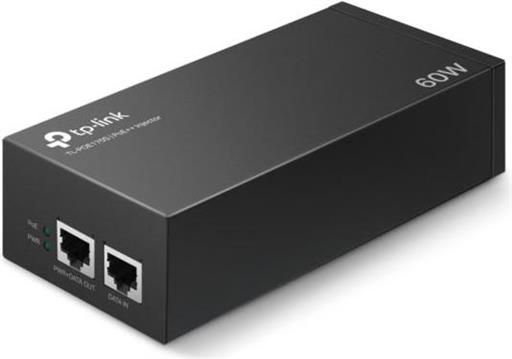

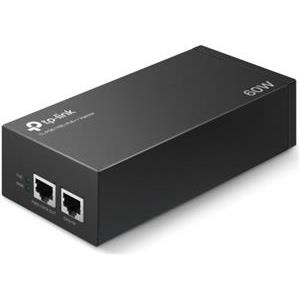

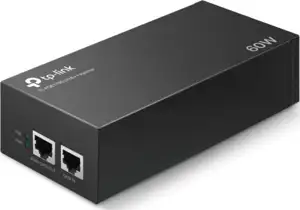

TP-Link PoE++ Injector Adapter, 1×Gbit PoE Port, 1×Gbit Non-PoE Port, 802.3at/af/bt, Data+Power po istom kablu do 100m, metalno kučište
| Proizvođač: | TP-Link |
| Šifra: | 1377350 |
| Kataloški broj: | TL-PoE170S |
| Jamstvo: | 36 |
| Raspoloživost: |
(Dobavljivo)
|
Prosječna ocjena:
0,00
| Glasova:
0
|
| Ocijeni
ovaj proizvod
|
46,10 €
**kod nonSEPA transakcija naplaćujemo naknadu banke
već od 1,42 €/mjesečno
Odabrali ste prikaz cijena za gotovinsko plaćanje - prikaži MPC
- 2 Gigabit ports ensure faster transmission
- Complies with IEEE802.3af/at/bt* standards, supplies up to 60 W
- Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
- Automatically determines and supplies the exact power to meet the device's need
- Wall-mounting and desktop design accommodates most installation scenarios
- Plug & Play installation, requires no configuration
- Integrated power supply
- Durable metal casing
Specifications
NETWORK
- Standards and Protocols: IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt
GENERAL
- Certification: FCC, CE, RoHS
- Environment: Operating Temperature: 0C to 45C (32F to 113F)
- Storage Temperature: -40C to 70C (-40F to 158F)
- Operating Humidity: 10% to 90%RH non-condensing
- Storage Humidity: 5% to 90%RH non-condensing
- Material: Metal Casing
HARDWARE FEATURES
- Network Media:
* 10BASE-T: UTP category 3, 4, 5 cable (maximum 100) - EIA/TIA-568 100ohm STP (maximum 100m)
* 100BASE-TX: UTP category 5, 5e cable (maximum 100m) - EIA/TIA-568 100ohm STP (maximum 100m)
* 1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m)
- Ports:
* 1× 10/100/1000Mbps RJ45 data-in port
* 1× 10/100/1000Mbps RJ45 power+data-out port
* 1× AC socket
- Power Consumption:
* Input: 100-240 V, 50/60 Hz, 1.6A
* Output: Auto-determine the necessary power requirements (max. 60 W)
- Basic Function:
* Auto-Sensing Algorithm enables providing power with 802.3af/at/bt PD
* Auto-determine the necessary power requirements
* Wall-mounting and desktop installation supported
* Plug-and-Play
- Dimensions (W×D×H): 155×70×42 mm
PACKAGE CONTENTS
- PoE++ Injector TL-POE170S
- Installation Guide
- Power Cord
- RJ45 Cable
NOTE
* TL-POE170S is incompatible with EAP235, EAP225, and EAP225-Outdoor
** To power up these EAPs, TL-POE160S is recommended to use
