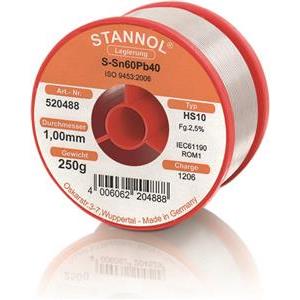

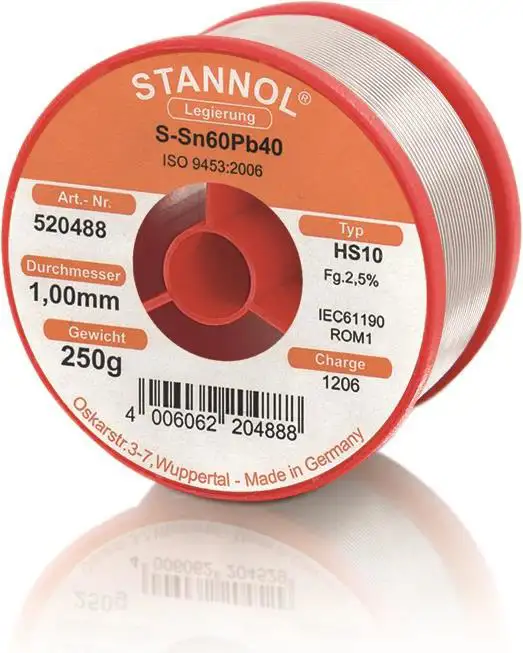

TINOL 1/4 kg 1mm, Stannol HS10 2,5% 520488
Prosječna ocjena: 0,00 | Glasova: 0 |
Ocijeni
ovaj proizvod
|
**kod nonSEPA transakcija naplaćujemo naknadu banke
već od 1,02 €/mjesečno
Odabrali ste prikaz cijena za gotovinsko plaćanje - prikaži MPC
TINOL, PROMJER 1,0 mm, TEŽINA 250g
SASTAV LEGURE : 60% KOSITAR 40% OLOVO
Features
• Halide-activated natural resin fluxes
• Low melting point, from +70°C
• High activity, good spread and high residue reliability
• Flux residues - can be left on the PCB
• Non-corrosive on NE metals
• Soldering in electronics and electrical assembly, audio devices and telecommunications
• Soldering on copper, brass, silver, as well as cadmium, nickel and tin surfaces
• Hand and robot soldering
Technical Specifications
Melting Range: 183...190°C
Flux Type (IEC 61190-1-3 ROM1): 1.1.2.B
Flux Content: 2,5%
Corrosive Effects (DIN 8516): None
Alloy (ISO 9453:2006: S-Sn60Pb40
Flux Core: 1 Core
Manufacturer
http://www.stannol.de
