Sonda XSONIC AIRMAR TM275LH-W, 000-13770-001
| Proizvođač: | Airmar |
| Šifra: | 1344359 |
| Kataloški broj: | 000-13770-001 |
| Jamstvo: | 12 |
| Raspoloživost: |
(Dobavljivo)
|
Prosječna ocjena:
0,00
| Glasova:
0
|
| Ocijeni
ovaj proizvod
|
3.352,89 €
**kod nonSEPA transakcija naplaćujemo naknadu banke
-10% za gotovinu
već od 93,14 €/mjesečno
*Za prikaz cijena sa popustom (-10%) kliknite ovdje

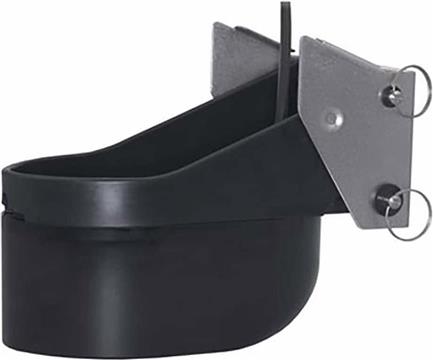

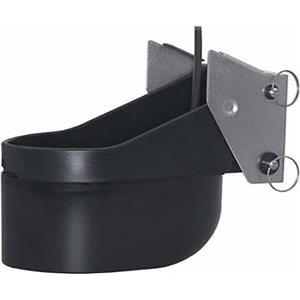

XSONIC TM275LH-W Urethane, Transom-mounted, 42-65 kHz/150-250 kHz Dual Channel CHIRP transducer (Wide Angle): Dual Black 9 pin connectors: Cable length 10 m (33.0 ft)
Part Number: 000-13770-001
Description
The TM275LH-W is a urethane, transom-mounted CHIRP transducer, ideal for sportfishing and commercial vessels 8 m (25 ft) and up. This dual-channel transducer combines Low CHIRP frequencies to accurately track the bottom in deep water, with High CHIRP at a constant 25° beam width for the best resolution and coverage in the upper water column and in shallower depths. The TM275C-LHW CHIRP transom-mount transducer has 8 internal, broadband ceramic elements. The low-frequency can be chirped from 42 to 65 kHz while the high-frequency chirps from 130 to 210 kHz. The beamwidth is a wide 25° across all frequencies. Also included is a high-precision water-temperature sensor for accurate sea-surface temperature readings.
Key Features
42-65 kHz Low CHIRP with 25-16° beam width
150-250 kHz High CHIRP with wide 25° beam for excellent fish targets
Up to 1200 m (4000 ft) range with Low CHIRP
8 internal broadband ceramics
Transom-mounted with urethane housing and stainless steel mounting bracket (can retrofit to existing TM258 & TM260 brackets)
Suitable for fiberglass, wood and metal hulls
Ideal for sportfishing and commercial vessels 8 m (25 ft) and up
Recommended for use with the NSSevo3 and BSM-3 broadband sounder module
