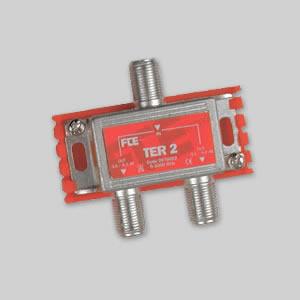

Razdjelnik FTE TER 2


  large-image
Razdjelnik FTE TER 2
Kliknite na sliku za povećanje
thumb
Najpopularnije
Proizvođač: Ostali
Šifra: 0260107
Kataloški broj: 0970002
Jamstvo:
Raspoloživost: Na upit (Na upit)
isporuka nepoznato
Navedeni rok isporuke je informativan te predstavlja uobičajeno vrijeme u kojem bi proizvod trebao biti spreman za isporuku, ukoliko u ovom trenutku zaprimimo uplatu.

*U navedeni rok se ne računaju subote i nedjelje, te državni praznici i ostali neradni dani. U slučaju slanja dostavnom službom nije uračunato vrijeme dostave.
Prosječna ocjena: Ocjena 0 0,00 | Glasova: 0
  Ocijeni ovaj proizvod

3,20 €

Načini plaćanja online

Popust 10%
3,20 €

Transakcijski račun
Popust 9%
3,24 €

Kriptovalute
Popust 8%
3,27 €

Maestro, MasterCard, Visa
Popust 6%
3,34 €

Union, PBZ Maestro/Visa Inspire 2-6 rata
Popust 5%
3,38 €

Diners, ZABA Master/Visa 2-6 rata, ERSTE Master/Visa/Maestro 2-6 rata
Popust 4%
3,41 €

Diners 2-12 rata, PBZ Visa Inspire/Maestro 7-12 rata, PBZ Visa Premium 2-6 rata
Popust 3%
3,45 €

ZABA Master/Visa 7-12 rata
Popust 2%
3,48 €

ERSTE Master/Visa/Maestro 2-6 rata, PBZ Visa Premium 7-12 rata
Popust se ne obračunava
3,56 €

ZABA Master/Visa 13-24 rate, Diners 13-24 rate

Načini plaćanja u trgovini

Popust 10%
3,20 €

Novčanice, Transakcijski račun
Popust 9%
3,24 €

Maestro, MasterCard, Visa
Popust 7%
3,31 €

PBZ Maestro/Visa Inspire 2-6 rata
Popust 6%
3,34 €

RBA Master/Visa 2-12 rata
Popust 5%
3,38 €

Diners, ZABA kartice 2-6 rata, Diners 2-6 rata, ERSTE Maestro/Visa/Master 2-8 rata, PBZ Maestro/Visa Inspire 7-12 rata
Popust 4%
3,41 €

ZABA Master/Visa 7-12 rata, Diners 7-12 rata, PBZ Visa Premium 2-6 rata
Popust 3%
3,45 €

ERSTE Maestro/Visa/Master 9-12 rata
Popust 2%
3,48 €

Diners 13-24 rate, PBZ Visa Premium 7-12 rata
Popust se ne obračunava
3,56 €

ZABA Maestro/Visa 7-12 rata, ZABA Visa 13-24 rate, ZABA Master 13-36 rata, Diners 25-36 rata

*MBNET kartice (Maestro, Visa, Mastercard) kojima je moguće plaćanje na rate izdane od Slatinske banke, Istarske kreditne banke, Sberbanke, KentBank i Agram banke
**kod nonSEPA transakcija naplaćujemo naknadu banke

već od 0,10 €/mjesečno

Odabrali ste prikaz cijena za gotovinsko plaćanje - prikaži MPC



Splitters for installations from 5 to 1000 MHZ. These elements accomplish shielding or screening requirements specified in the european norm in force, specially concerning to electromagnetic compatibility. European norm EN 50083 section 2 (and 2/A1) specifies screening levels that passive elements must accomplish in distribution systems of TV and sound signals through coaxial cable. In this norm are defined levels and grades of quality of passive elements. Elements that accomplish A CLASS specifications, see attached board, for its screening are specially recommended to be used in distribution networks which are exposed to high levels of interferences in environment. This new series of passive elements FTE Maximal fulfill A CLASS requirements of this norm. References with these features are marked as A.

Covered Band (MHz) 5-1000
Return band (MHz) 5-30 / 5-65
Nr. Of outputs 2
Distribution attenuation (dB) Freq.(MHz) Typ Max 5-300 3,2 3,5 300-606 3,3 3,5 606-1000 3,5 3,8
Decoupl. between outputs (dB) 5-300 > 35 300-606 > 30 606-1000 > 30
Return loss (dB) IN > 24 OUT > 22
Screening factor (dB) > 100
Impedance (?) 75
Current pass no
Connectors F-female
Plastic support included
Dimensions (mm) 10 pcs: 165 x 125 x 70 120 pcs: 330 x 250 x 210
Packing weight (Kg) 10 pcs: 0,75 120 pcs: 9
Packing quantity 10 / 120
