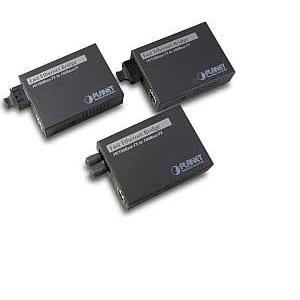

PLANET Media optički pretvarač 10/100Base-TX-100Base-FX(SC) Singlemode, 15km
| Proizvođač: | Planet |
| Šifra: | 1314957 |
| Kataloški broj: | FT-802S15 |
| Jamstvo: | 24 |
| Raspoloživost: |
(Dobavljivo)
isporuka 1-2 radnih dana
Navedeni rok isporuke je informativan te predstavlja uobičajeno vrijeme u kojem bi proizvod trebao biti spreman za isporuku, ukoliko u ovom trenutku zaprimimo uplatu.
*U navedeni rok se ne računaju subote i nedjelje, te državni praznici i ostali neradni dani. U slučaju slanja dostavnom službom nije uračunato vrijeme dostave. |
Prosječna ocjena:
0,00
| Glasova:
0
|
| Ocijeni
ovaj proizvod
|
46,94 €
**kod nonSEPA transakcija naplaćujemo naknadu banke
već od 1,45 €/mjesečno
Odabrali ste prikaz cijena za gotovinsko plaćanje - prikaži MPC
Features
- Complies with IEEE 802.3, IEEE 802.3u 10/100Base-TX, 100Base-FX, IEEE 802.3afPower over Ethernet standards
- Auto negotiation for 10/100Base-TX half duplex mode or full duplex mode, auto-MDI / MDI-X function on copper port
- IEEE 802.3x full duplex flow control and back pressure in half duplex eliminate packets loss
- Provides DC 48V power over RJ-45 Ethernet cable to devices with Ethernet port
- Auto-detect PoE IEEE 802.3af equipment; protects devices from being damaged by incorrect installation
- 100Base-FX interface for up to 15km (single-mode fiber 9µm/125µm)
- DIP-switch: LFP (Link Fault Pass-through) mode selection
- Compact in size, easy to install
- LED indicators for easy network diagnostics
Specifications
INTERFACE
- Copper: 1-port Fast Ethernet TP interface, auto negotiation, auto-MDI / MDI-X with PoE injector function
- Fiber: Single-mode: 8.3/125, 8.7/125, 9/125µm optical fiber
- Fiber Port Type (connector): SC
- Cable Distance: 15km
- Optical Frequency: 1310nm
- Launch Power: max. -7 min.-20 dBm
- Receive Sensitivity: -28
- Maximum Input Power: -8
POWER OVER ETHERNET
- PoE Standard: IEEE 802.3af Power over Ethernet
- Power Output: PoE 48V DC, max. 15.4 watts, 350mA
- Power Pin Assignment: 1/2(+) , 3/6(-)
HARDWARE
- Switch Architecture: Store-and-Forward
- Flow Control:
* Back pressure for half duplex mode
* IEEE 802.3x pause frame for full duplex mode
- LED:
* System: Power, Status
* FX / LNK: Data Active, Fiber Link
* TX / LNK: 10/100 Link / Active
* PoE in Use: Detects PSE Device
- Dimensions (H×W×D): 26×70×97 mm
- Weight: 0.2 kg
- Power Supply: 48V DC, 0.4A external AC-to-DC adapter
- Operating Temperature: 0 - 50 degrees C
- Operating Humidity: 5 - 90% (non-condensing)
- LFP Mode:
* Enable: when either TP port or FX port is broken, shut down the other port
* Disable: Link LED indicators is still on if connection of the other end is broken
STANDARD CONFORMANCE
- Protocols and Standards Compliance:
* IEEE 802.3 Ethernet
* IEEE 802.3u Fast Ethernet
* IEEE 802.3x Flow Control
* IEEE 802.3af Power over Ethernet
- Cables:
* TP: Cat 5/5e UTP cable
* Fiber: Multi-mode: 50/125µm or 62.5/125µm optical fiber
* Single-mode: 8.3/125, 8.7/125, 9/125µm optical fiber
