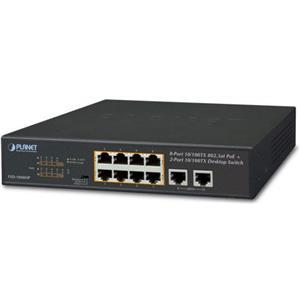

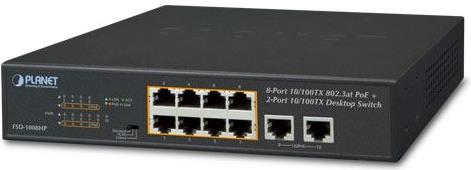

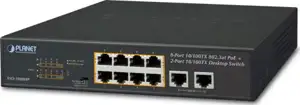

PLANET FSD-1008HP, Neupravljano, Fast Ethernet (10/100), Puni dostrani ispis, Podrška za napajanje putem Etherneta (PoE), Montaža u poslužiteljski ormar, 1U

PLANET FSD-1008HP. Tip preklopnika: Neupravljano. Tip RJ-45 Ethernet priključaka za osnovno preklapanje: Fast Ethernet (10/100), Količina RJ-45 Ethernet priključaka za osnovno preklapanje: 10. Puni dostrani ispis. MAC adresna tablica: 8000 unosi, Kapacitet razdjelnika: 2 Gbit/s. Mrežni standard: IEEE 802.3,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x. Podrška za napajanje putem Etherneta (PoE). Montaža u poslužiteljski ormar, Veličina: 1U

Key Features
PHYSICAL PORT
- 10-port 10/100BASE-TX Fast Ethernet RJ45 copper
- 8-port IEEE 802.3at PoE+ Injector (Port-1 to Port-8)

POWER OVER ETHERNET
- Complies with IEEE 802.3at Power+ over Ethernet end-span PSE
- Up to 8 ports of IEEE 802.3af/802.3at devices powered
- Supports PoE power up to 30.8 watts for each PoE port
- Each port supports 55V DC power to PoE powered device
- 120-watt PoE budget
- Auto detects powered device (PD)
- Circuit protection prevents power interference between ports
- Remote power feeding up to 100m in standard mode with 250m in extend mode

SWITCHING
- Hardware-based 10/100Mbps auto-negotiation and auto MDI/MDI-X
- Flow control for full duplex operation and back pressure for half duplex operation
- IEEE 802.1Q VLAN transparency
- Hardware DIP switch for Standard, VLAN and Extend mode selection; the Extend mode features 30-watt PoE transmit distance of 250m at speed of 10Mbps and VLAN isolation (Only for Port-1 to Port-8)
- Solid DIP switch to isolate ports to prevent broadcast storm and defend DHCP spoofing

HARDWARE
- 9-inch desktop size, 1U height, rack mountable
- LED indicators for system power, per port PoE ready and PoE activity, speed, Link/Act
- Fanless design
- Supports Energy-Efficient Ethernet (EEE) function (IEEE 802.3az)

Hardware Specifications
- Copper Port: 10× 10/100BASE-TX MDI/MDIX Ports
- PoE Injector Port: 8-port with 802.3at/af PoE injector function with Port-1 to Port-8
- Switch Architecture: Store-and-Forward
- Switch Fabric: 2Gbps/non-blocking
- Switch Throughput@64 bytes: 1.48Mpps@64 bytes
- MAC Address Table: 8K entries, automatic source address learning and aging
- Maximum Frame Size: 1522 bytes
- Flow Control:
* IEEE 802.3x pause frame for full-duplex
* Back pressure for half-duplex
- LED:
* System: Power (Green)
* 10/100BASE-TX RJ45 interfaces: 10/100Mbps LNK/ACT (Green)
* PoE interfaces: PoE-in-Use (Orange)
- DIP Switch: Selectable operation mode (Standard, VLAN, Extend)
- Dimensions (W×D×H): 220×150×43 mm (1U height)
- Enclosure: Metal
- Weight: 1230 g
- Power Requirements: AC 100-240V, 50/60Hz, 2.5A max.
- Power Consumption/ Dissipation:
* System On: Max. 2.4 watts/8.1 BTU
* Ethernet Full Loading: Max. 5 watts/10.2 BTU
* PoE Full Loading: Max. 129 watts/440.1 BTU
- ESD Protection:
* Contact discharge of 4KV DC
* Air discharge of 6KV DC
- Thermal Fan: Fanless

Power over Ethernet
- PoE Standard:
* IEEE 802.3af Power over Ethernet/PSE
* IEEE 802.3at Power over Ethernet Plus/PSE
- PoE Power Supply Type: End-span
- PoE Power Output: Per port 55V DC, 540mA. max. 30 watts
- Power Pin Assignment: 1/2(+), 3/6(-)
- PoE Power Budget: 120 watts
- Max. Number of Class 2 PDs: 8
- Max. Number of Class 3 PDs: 8
- Max. Number of Class 4 PDs: 4

Standards Conformance
- Regulatory Compliance: FCC Part 15 Class A, CE
- Standards Compliance:
* IEEE 802.3 10BASE-T
* IEEE 802.3u 100BASE-TX
* IEEE 802.3x Flow control and back pressure
* IEEE 802.3af Power over Ethernet
* IEEE 802.3at Power over Ethernet Plus
* IEEE 802.3az Energy Efficient Ethernet (EEE)

Environment
- Operating:
* Temperature: 0C - 50 degrees C
* Relative Humidity: 5% - 95% (non-condensing)
- Storage:
* Temperature: -10C - 70 degrees C
* Relative Humidity: 5% - 95% (non-condensing)
