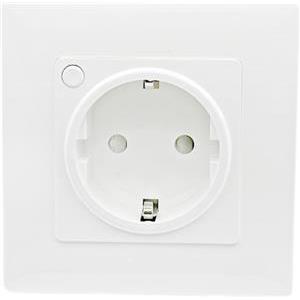

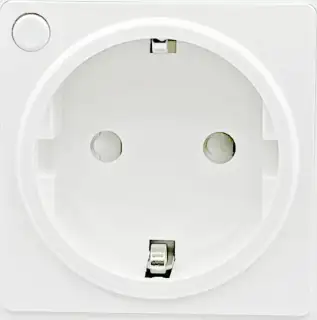

Pametna zidna utičnica Athom, mjeri potrošnju, 16A, preflashed TASMOTA
| Proizvođač: | Athom |
| Šifra: | 1396395 |
| Kataloški broj: | SK01-TAS-FK |
| Jamstvo: | 12 |
| Raspoloživost: |
(Raspoloživo)
isporuka odmah
Navedeni rok isporuke je informativan te predstavlja uobičajeno vrijeme u kojem bi proizvod trebao biti spreman za isporuku, ukoliko u ovom trenutku zaprimimo uplatu.
*U navedeni rok se ne računaju subote i nedjelje, te državni praznici i ostali neradni dani. U slučaju slanja dostavnom službom nije uračunato vrijeme dostave. |
Prosječna ocjena:
0,00
| Glasova:
0
|
| Ocijeni
ovaj proizvod
|
19,90 €
**kod nonSEPA transakcija naplaćujemo naknadu banke
već od 0,61 €/mjesečno
Odabrali ste prikaz cijena za gotovinsko plaćanje - prikaži MPC
HLW8032 consumption monitoring chipset build in, NO calibration needed,
The measurement error of active power about 0.2%
The measurement error of effective current is 0.5%
The measurement error of effective voltage is 0.5%
Pre Flashed TASMOTA EU Wall Socket Cosumption monitoring
The latest full version
Fully compatible with official Tasmota OTA server
Pre configed IOs plug and play
Pre flashed before assembling
Build in ESP8266 chip with 2M flash
Total local control with quick setup and updates. Control using MQTT, Web UI, HTTP or serial. Automate using timers, rules or scripts. Integration with home automation solutions. Incredibly expandable and flexible. Can be easily upgrade to ESPHome or Homekit etc. Contact us for upgrade firmware
Specification:
Input voltage:100-240VAC 50/60Hz
Current:16A(Max)
Wireless standard:IEEE802.11b/g/n,2.4GHz
Housing Color:Whtie
Operation Temperature:-20?~+50?
Plastic material:ABS+PC
Fire-protection rating:94-V0
Template:
{"NAME":"Athom_SK01_EU_Wall_Outlet","GPIO":[0,0,0,3104,0,32,0,0,224,320,0,0,0,0],"FLAG":0,"BASE":18}
GPIOs:
GPIO# Component
GPIO0 None
GPIO1 None
GPIO2 None
GPIO3 CSE7766 Rx
GPIO4 None
GPIO5 Button1
GPIO9 None
GPIO10 None
GPIO12 Relay1
GPIO13 Led1i
GPIO14 None
GPIO15 None
GPIO16 None
FLAG None
Notice:
HLW8032 occasionally report invalid power measurements for load values below 5W. During this situation it sometimes reports a valid load. By setting SetOption39 to 128 (default) it must read at least 128 invalid power readings before reporting there is no load.
To discard all loads below 6W simply set SetOption39 1 (0 will reset to default on next restart) so it will report no load below 6W.
