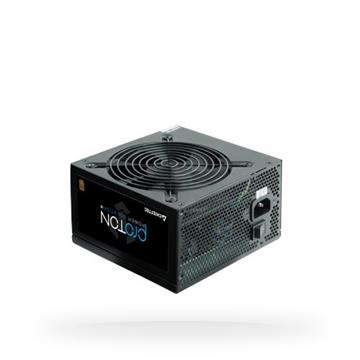

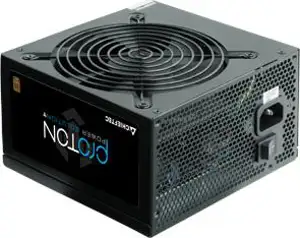

Napajanje 600W CHIEFTEC Proton Series, BDF-600S, ATX v2.3, 140mm vent, 80+ Bronze
Proizvod nije dobavljiv. Potražite neke druge modele koji su zamijenili Napajanje 600W CHIEFTEC Proton Series, BDF-600S, ATX v2.3, 140mm vent, 80+ Bronze
| Proizvođač: | Chieftec |
| Šifra: | 1311476 |
| Kataloški broj: | BDF-600S |
| Jamstvo: | 24 |
Prosječna ocjena:
0,00
| Glasova:
0
|
| Ocijeni
ovaj proizvod
|
With the PROTON Series, CHIEFTEC advances into the new-age DC to DC power supply technology. The series allows for energy conservation, as well as a much higher efficiency and power stability, which in turn ensures a higher longevity of installed components. The efficiency of the PROTON Series is certified at 80 PLUS BRONZE thereby fulfilling all ENERGY STAR 5,0 and higher requirements as stipulated by the EU.
Performance
AC Input: 115-230V
Frequency: 50 - 60Hz
+5V: 18A
+3,3V: 18A
+5V & +3,3V combined: 103W
+12V 1: 50A
+12V 2: N/A
+12V 1 & +12V 2 combined: N/A
+12V 3: N/A
+12V 4: N/A
+12V 3 & +12V 4 combined: N/A
P.F.: 0,9
-12V: 0,3A
+5VSB: 2,5A
Maximum Load: 600W
Native cable
24PIN ATX: 1
SATA: 6
MOLEX: 2
Floppy: -
4PIN 12V: -
8PIN 12V: -
8PIN (4+4) 12V: 1
6PIN PCIe: -
8PIN (6+2) PCIe: 2
Features
Spezification: ATX 12V 2.3
Form factor: PS II
Efficiency: 85%
Dimension (DxWxH): 140 mm x 150 mm x 87 mm
PFC: Active PFC (0,9)
Fan: 120mm silent fan
Security:
UVP (Undervoltage protection)
OVP (Overvoltage protection)
SCP (Short-circuit protection)
OPP (Overload protection)
OCP (Overcurrent protection)
OTP (Over Temperature Protection)
AFC (Automatic Fanspeed Control)
| Osnovne karakteristike | |
|---|---|
| Snaga [W]: | 600 |
| Modularno: | Ne |
Učinkovitost:
|
Bronze (85%) |
