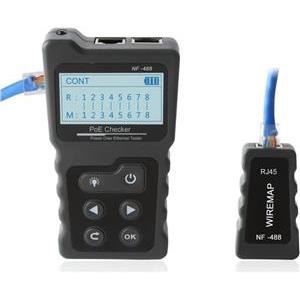

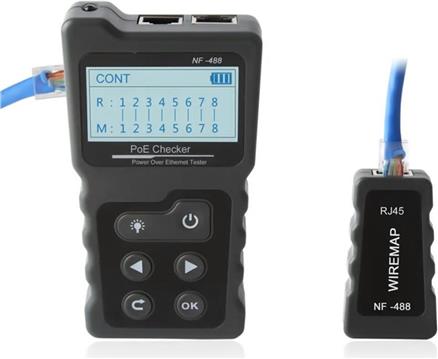

The NF-488 PoE checker is consists of two parts: an Emitter and a remote. It has functions such as standard and non-standard PoE equipment detection, PoE power online test, network cable continuity test, DC power test, switch loop-back test and other functions. Therefore, it is a perfect for security monitoring, communication wires, integrated wiring and other weak current systems.
Features:
Test the information of the standard/non-standard PoE device, such as voltage, polarity, midspan or endspan.
Identify the type of PSE, it is af or at standard.
Test of real-time power consumed by PD devices in PoE power supply systems.
Test the open, short, cross status in the network cable.
Test the power consumed by DC appliances.
The loop test function of the switch.
Specifications:
Material: ABS
Transmitter Specification:
CONTINUITY FUNCTION:
Cable Types: STP/UTP
Max Testing Range: 600m
Wire Mapping: Emitter + remote, emitter + switch/routor
POE FUNCTION:
Test Range: DC5-60V PoE switch
Standard Identify: 802.3af/at(standard/non-standard)
Test Range Power: 0-18W
POWER FUNCTION:
Voltage Test Range: DC0-60V
Current Test Range: 0-3A
Power Test Range: 0-180W
Display: LCD 128*64mm, with back light
Input Voltage Protection: DC48V, 5mA
Max Working Current: ?80mA
Loopback: Compatible with 10M, 100M,1000M switch
Power Supply: 3 * 1.5V AAA battery (Not included)
Remote Specification:
Ports: RJ45
Function: Wire mapping for network cable
Input Voltage Protection: DC48V, 5mA
Emitter Size: Approx. 12.5 * 7 * 2.8cm / 4.92 * 2.76 * 1.1in
Remote Size: Approx. 6.5 * 3.7 * 2.3cm / 2.56 * 1.46 * 0.91in
Emitter Weight: Approx. 123g / 4.33oz
Remote Weight: Approx. 24g / 0.86oz
Package Weight: Approx. 301g / 10.64oz
Package Size: Approx. 22.5 * 11 * 4cm / 8.86 * 4.33 * 1.58in
Package List:
1 * Emitter
1 * Remote
1 * Crocodile Clip Test Line
2 * Cable Lead
1 * Carry Bag
1 * User Manual (English)
