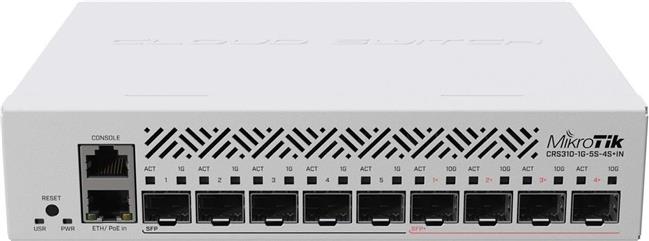

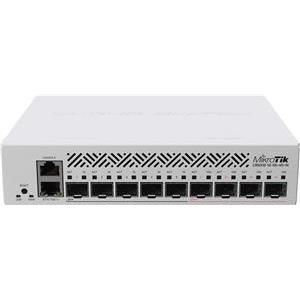

MikroTik Cloud Router Switch CRS310-1G-5S-4S IN. Rack mountable, 10-Port Switch with 5 x 1G SFP slots and 4 x 10G SFP slots. 1 x GbE LAN Port with passive PoE support. ARM CPU v7 98DX226S processor, 800 MHz frequency, ARM 32bit, 256 MB RAM. Active cooling

CRS310-1G-5S-4S+IN 10 Gigabit fibre connectivity way over a 100 meters – for small offices or ISPs. Hardware offloaded VLAN-filtering and even some L3 routing on a budget!

This switch is an indoor variation of the prominent netFiber 9 switch – used by many small and medium ISPs for reliable 10 Gigabit fibre connections stretching over a 100 meters. With five 1G SFP ports, four 10G SFP+ ports, and an additional Gigabit Ethernet port, this is the perfect upgrade for existing CRS212 setups. You’re getting the modern ARM v7 CPU, 256 MB of RAM, and better cooling. The new Marvell switch-chips bring phenomenal performance to the table!

The Gigabit Ethernet port has a direct connection to the switch chip – so you can enjoy full gigabit speed there. And it supports PoE-in, giving you an additional powering option in tricky spots.

You can mount this switch in a standard 1U rack to keep everything organized. And it has all the power you would expect from a rackmount device: CRS310 supports hardware offloaded VLAN- filtering. And even some hardware offloaded Layer-3 routing.

CRS310-1G-5S-4S+IN is a fantastic tool for anyone working with indoor connections over 100 meters while keeping data loss and ping low. Optical fiber can be a great alternative to copper if you are worried about electromagnetic interference, tampering or eavesdropping.
Send purchase questions

Product code CRS310-1G-5S-4S+IN
Architecture ARM 32bit
CPU 98DX226S
CPU core count 1
CPU nominal frequency 800 MHz
Switch chip model 98DX226S
Dimensions 200 x 166 x 45 mm
RouterOS license 5
Operating System RouterOS
Size of RAM 256 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C
Suggested price $199.00
Powering
Details
Number of DC inputs 2 (PoE-IN, DC jack)
DC jack input Voltage 18-57 V
Max power consumption 20 W
Max power consumption without attachments 8 W
Cooling type 1 fan
PoE in 802.3af/at
PoE in input Voltage 18-57 V
Ethernet
Details
10/100/1000 Ethernet ports 1
Fiber
Details
SFP ports 5
SFP+ ports 4
Peripherals
Details
Serial console port RJ45
Other
Details
CPU temperature monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes
