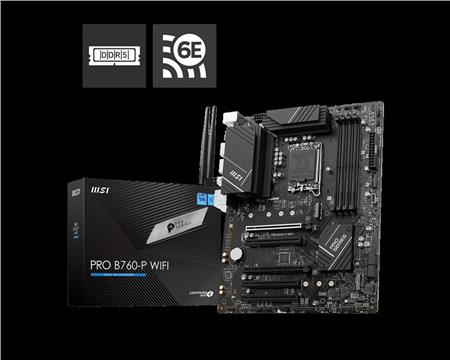

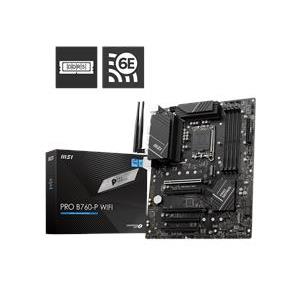

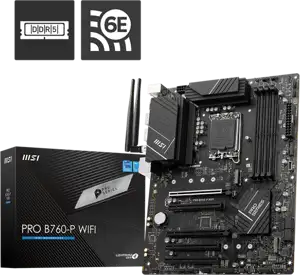

MB MSI Intel 1700 PRO B760-P WiFi DDR4
| Proizvođač: | MSI |
| Šifra: | 1391408 |
| Kataloški broj: | 7D98-001R |
| Jamstvo: | 24 |
| Raspoloživost: |
(Dobavljivo)
|
Prosječna ocjena:
0,00
| Glasova:
0
|
| Ocijeni
ovaj proizvod
|
154,50 €
**kod nonSEPA transakcija naplaćujemo naknadu banke
već od 4,77 €/mjesečno
Odabrali ste prikaz cijena za gotovinsko plaćanje - prikaži MPC
shape factor
ATX
Socket
Intel 1700
chipset
Intel B760
CPU-Compatibility
Core i-13000, Core i-12000, Pentium Gold G7000, Celeron G6000
RAM
4x DDR4 DIMM, dual PC4-42666U/?DDR4-5333 (OC), max. 128GB (UDIMM)
Extension slots
2x PCIe 4.0 x16 (1x x16, 1x x4), 3x PCIe 3.0 x16 (x1), 1x M.2/?M-Key (PCIe 4.0 x4, 22110/?2280/?2260/?2242), 1x M.2/?M-Key (PCIe 4.0 x4/?SATA, 2280/?2260/?2242), 1x M.2/?E-Key (PCIe, 2230, occupied with WiFi+BT module)
external connectors
1x HDMI 2.1 (iGPU), 1x DisplayPort 1.4 (iGPU), 1x USB-C 3.1 (10Gb/?s), 2x USB-A 3.1 (10Gb/?s), 4x USB-A 2.0 (480Mb/?s), 1x 2.5GBase-T (Realtek RTL8125BG), 5x jack, 1x toslink, 1x PS/?2 Combo, 2x antenna connector (RP-SMA)
Internal connectors
1x USB-C 3.0 Key-A Header (5Gb/?s), 1x USB 3.0 Header (5Gb/?s, 2x USB 3.0), 2x USB 2.0 header (480Mb/?s, 4x USB 2.0), 4x SATA 6Gb/s (B760), 1x serial, 1x parallel, 1x TPM-Header, 1x Thunderbolt-Header 15-Pin (16-1), 1x Chassis Intrusion-Header
Header Cooling
1x CPU fan 4-Pin, 5x fan 4-Pin, 1x pump 4-Pin
Header Lighting
1x 4-Pin RGB (+12V/?G/?R/?B, max. 3A), 2x 3-Pin ARGB (+5V/?DATA/?GND, max. 3A, MSI V2)
buttons/Switches
not available
Audio
7.1 (Realtek ALC897)
Graphics
iGPU
Wireless
Wi-Fi 6E (WLAN 802.11a/?b/?g/?n/?ac/?ax, 2x2), Bluetooth 5.3
RAID level
0/?1/?5/?10 (B760)
Multi-GPU
not available
Power connections
1x 24-Pin ATX, 1x 8-Pin EPS12V, 1x 4-Pin ATX12V
VRM
13 virtual phases (12+1), 7 real phases (6+1), PWM-Controller: RT3628AE (max. 9 phases)
MOSFETs CPU
12x 53A AONS36308/?AONS36303
MOSFETs SoC
2x 53A AONS36308/?AONS36303
Lighting
not available
BIOS
1x 32MB (256Mb)
Special features
audio+solid capacitors, Diagnostic LED (LED indicators), 1x M.2-passive cooler, onboard TPM 2.0 support (Intel PTT)
Warranty
three years (from date of manufacture, handling by merchant)
| Osnovne karakteristike | |
|---|---|
| Socket: | 1700 |
| Format ploče: | ATX |
| CPU podrška: |
Intel 14. gen Intel 13. gen Intel 12. gen |
| Memorija: | DDR4 |
| Broj utora: | 4 |
| Chipset: | Intel B760 |
| Ostale karakteristike | |
| Boja: | Crna |
