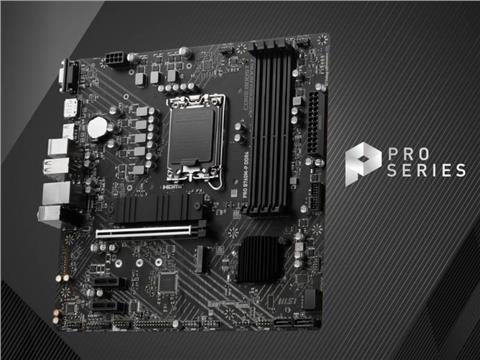

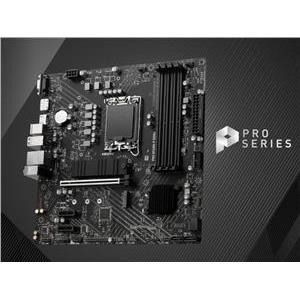

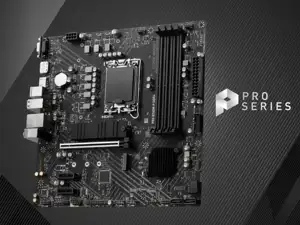

MB MSI Intel 1700 PRO B760M-P DDR4


Proizvođač: MSI
Šifra: 1391978
Kataloški broj: 7E02-001R
Jamstvo: 24
Raspoloživost: Dobavljivo (Dobavljivo)
Prosječna ocjena: Ocjena 0 0,00 | Glasova: 0
  Ocijeni ovaj proizvod

107,11

Načini plaćanja online

Popust 10%
96,40 €

Transakcijski račun
Popust 9%
97,47 €

Kriptovalute
Popust 8%
98,54 €

Maestro, MasterCard, Visa
Popust 6%
100,68 €

Union, PBZ Maestro/Visa Inspire 2-6 rata
Popust 5%
101,76 €

Diners, ZABA Master/Visa 2-6 rata, ERSTE Master/Visa/Maestro 2-6 rata
Popust 4%
102,83 €

Diners 2-12 rata, PBZ Visa Inspire/Maestro 7-12 rata, PBZ Visa Premium 2-6 rata
Popust 3%
103,90 €

ZABA Master/Visa 7-12 rata
Popust 2%
104,97 €

ERSTE Master/Visa/Maestro 2-6 rata, PBZ Visa Premium 7-12 rata
Popust se ne obračunava
107,11 €

ZABA Master/Visa 13-24 rate, Diners 13-24 rate

Načini plaćanja u trgovini

Popust 10%
96,40 €

Novčanice, Transakcijski račun
Popust 9%
97,47 €

Maestro, MasterCard, Visa
Popust 7%
99,61 €

PBZ Maestro/Visa Inspire 2-6 rata
Popust 6%
100,68 €

RBA Master/Visa 2-12 rata
Popust 5%
101,76 €

Diners, ZABA kartice 2-6 rata, Diners 2-6 rata, ERSTE Maestro/Visa/Master 2-8 rata, PBZ Maestro/Visa Inspire 7-12 rata
Popust 4%
102,83 €

ZABA Master/Visa 7-12 rata, Diners 7-12 rata, PBZ Visa Premium 2-6 rata
Popust 3%
103,90 €

ERSTE Maestro/Visa/Master 9-12 rata
Popust 2%
104,97 €

Diners 13-24 rate, PBZ Visa Premium 7-12 rata
Popust se ne obračunava
107,11 €

ZABA Maestro/Visa 7-12 rata, ZABA Visa 13-24 rate, ZABA Master 13-36 rata, Diners 25-36 rata

*MBNET kartice (Maestro, Visa, Mastercard) kojima je moguće plaćanje na rate izdane od Slatinske banke, Istarske kreditne banke, Sberbanke, KentBank i Agram banke
**kod nonSEPA transakcija naplaćujemo naknadu banke

-10% za gotovinu

već od 2,98 €/mjesečno

*Za prikaz cijena sa popustom (-10%) kliknite ovdje



shape factor
µATX
Socket
Intel 1700
chipset
Intel B760
CPU-Compatibility
Core i-13000, Core i-12000, Pentium Gold G7000, Celeron G6000
RAM
4x DDR4 DIMM, dual PC4-38400U/?DDR4-4800 (OC), max. 128GB (UDIMM)
Extension slots
1x PCIe 4.0 x16, 2x PCIe 4.0 x1, 1x M.2/?M-Key (PCIe 4.0 x4, 2280/?2260/?2242), 1x M.2/?M-Key (PCIe 4.0 x4/?SATA, 2280/?2260/?2242)
external connectors
1x VGA (iGPU), 1x HDMI 1.4 (iGPU), 1x DisplayPort 1.4 (iGPU), 1x USB-C 3.1 (10Gb/?s), 1x USB-A 3.0 (5Gb/?s), 4x USB-A 2.0 (480Mb/?s), 1x Gb LAN (Realtek RTL8111H), 3x jack, 1x PS/?2 keyboard, 1x PS/?2 mouse
Internal connectors
1x USB 3.0 Header (5Gb/?s, 2x USB 3.0), 2x USB 2.0 header (480Mb/?s, 4x USB 2.0), 4x SATA 6Gb/s (B760), 1x serial, 1x parallel, 1x TPM-Header, 1x Chassis Intrusion-Header
Header Cooling
1x CPU fan 4-Pin, 2x fan 4-Pin
Header Lighting
1x 4-Pin RGB (+12V/?G/?R/?B, max. 3A)
buttons/Switches
not available
Audio
7.1 (Realtek ALC897)
Graphics
iGPU
Wireless
not available
RAID level
0/?1/?5/?10 (B760)
Multi-GPU
not available
Power connections
1x 24-Pin ATX, 1x 8-Pin EPS12V
VRM
7 virtual phases (6+1), 4 real phases (3+1), PWM-Controller: RT3628AE (max. 9 phases)
MOSFETs CPU
6x 55A SM4337/?SM4503
MOSFETs SoC
2x 55A SM4337/?SM4503
Lighting
not available
BIOS
1x 32MB (256Mb)
Special features
audio+solid capacitors, Diagnostic LED (LED indicators), 1x M.2-passive cooler, onboard TPM 2.0 support (Intel PTT)
Warranty
three years (from date of manufacture, handling by merchant)

Osnovne karakteristike
Socket: 1700
Format ploče: mATX
CPU podrška: Intel 14. gen
Intel 13. gen
Intel 12. gen
Memorija: DDR4
Broj utora: 4
Chipset: Intel B760
Ostale karakteristike
Boja: Crna
