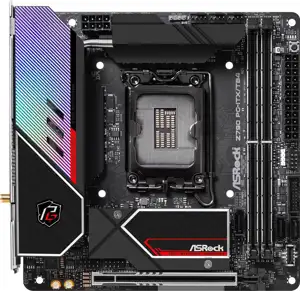

ASRock Z790 PG-ITX TB4 Motherboard
Supports 13th Gen & 12th Gen Intel Core Processors
SPS Phase Power Design
2 x DDR5 DIMMs, supports
1 PCIe 5.0 x16
Graphics Output Options: 2 USB4 Type-C, 1 HDMI, 1 DisplayPort
7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec), Nahimic Audio
1 Hyper M.2 (PCIe Gen4x4 & SATA3), 2 Hyper M.2 (PCIe Gen4x4), 3 SATA3
1 USB 3.2 Gen2x2 Type-C (Front), 6 USB 3.2 Gen2 Type-A (Rear), 2 USB 3.2 Gen1 (Front), 2 USB 2.0 (Front)
Killer 2.5G LAN
Killer 802.11ax Wi-Fi 6E + Bluetooth

CPU Socket Socket 1700
CPU Brand Intel
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer Intel
Supported Processors 13th Gen & 12th Gen Intel Core Processors
64-bit Support Yes
Socket LGA1700

Rear Panel I/O Ports
USB Ports 2 x Thunderbolt 4 (USB-C)
6 x USB 3.1
DisplayPorts 1 x DisplayPort 1.4
HDMI Port 1 x HDMI 2.1
RJ-45 Ports 1 x RJ-45
Audio Line Out Ports 1 x 3.5mm Jack
Microphone In Port 1 x 3.5mm Jack
S/PDIF Port 1 x S/PDIF Optical Out
Antenna Connector(s) 2 x SMA Antenna

Internal I/O Connectors
SATA Connectors 3 x SATA III
USB Connectors 1 x USB-C 3.2 header (supports 1 ports)
1 x USB 3.0 header (supports 2 ports)
1 x USB 2.0 header (supports 2 ports)
Speaker 1 x Speaker header
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
1 x CPU/Water Pump fan header
1 x Chassis fan header
Power Connector Port 1 x 24-pin ATX
1 x 8-pin EPS
Other Connectors 2 x M.2 slots, Key M, Type 2280 (PCIe Gen4)
1 x M.2 slot, Key M, Type 2280 (PCIe Gen4 or SATA)
1 x 3-pin ARGB LED header
1 x 4-pin RGB LED header

Memory
Memory Bus Speed Up to 6800+ (OC) MHz
Memory Type DDR5
Maximum RAM 64 GB
Memory Slot 2 x DIMM

Motherboard
Northbridge Z790
RAID Supported Yes
RAID Format RAID 0, 1, 5
SATA Supported Yes

Expansion
Number of PCI Express Slots 1 x PCI Express 5.0 x16 slot

Graphics Device
Integrated Graphics Supported Yes

Sound
Integrated Sound Realtek ALC4082

Warranty
Warranty 3 Years

Network
Integrated Network Killer E3100X
Network Speeds Supported Up to 2.5 Gbps
Wireless LAN Yes (Wi-Fi 6E)
Wireless Network Speed Up to 2.4 Gbps
Bluetooth Yes
Bluetooth Version 5.2

System Requirements
Operating Systems Supported Microsoft Windows 11 64-bit

System
BIOS 256Mb AMI UEFI Legal BIOS with GUI support
Software Included (may be trial or restricted) Yes
Drivers Yes

Physical
Form Factor ITX Motherboard
In The Box Motherboard
1 x User Manual
2 x SATA Data Cables
1 x ASRock WiFi 2.4/5/6 GHz Antenna
2 x Thermal Pads for M.2 SSD
3 x Screws for M.2 Sockets
Width 170 mm
Length 170 mm

Key Features
Firewire
IDE/EIDE Supported
SCSI/SAS Supported
Wireless Network Yes
Chipset Manufacturer Intel
Number of PCI Slots slot(s)
Number of PCI-X Slots slot(s)
Main Colour
Socket(s)
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 3 port(s)
Number of USB Ports 6 port(s)
SATA III Support Yes
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection No
DVI Connection No
HDMI Connection Yes
DisplayPort Connection Yes
Motherboard Form Factor ITX
Wake on LAN
Motherboard Power Connectors 8-Pin
Motherboard Chipset Intel Z790
Thunderbolt Yes
Motherboard Model ASRock Z790 PG-ITX/TB4
WiFi Speed 2400 Mbps
USB 3.1 Support Yes
Internal USB3.0 Header Yes
Cooler Height mm
M.2 Support Yes
On-board RGB Control ASRock RGB LED
Memory Speed 6800 MHz
Skip Audio Test
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Internal USB Type-C Header Yes
Radiator Length mm
Microsoft Processor List
Power Requirement (auto) 30 W
Cooler count
Max Memory Speed Supported (Non-overclocked) 4800 MHz
Max Memory Speed Supported (overclocked) 6800 MHz
CPU Power Pins (female) 8
PCI Express Power Pins (female)
Total M.2 Slots 3
Maximum NVMe M.2 ports 3
Maximum SATA M.2 ports 1
PCI-e slots
SATA ports 3
No. of front USB2.0 ports supported 2
No. of front USB3.0 ports supported 2
No. of front USB-C ports supported 1
