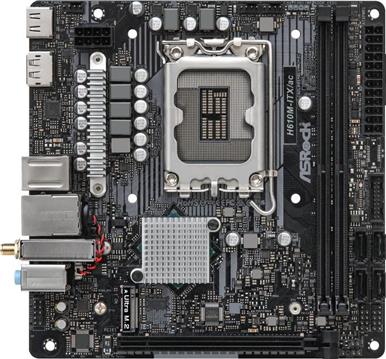

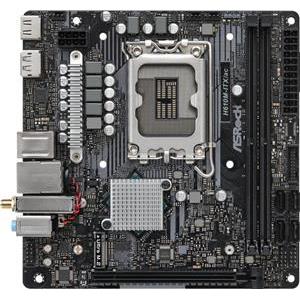

Edition H610M-ITX/AC
Form Factor Mini-ITX
CPU Socket 1700
Chipset Intel H670
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz) DDR4 - 3200
Max. Memory Capacity 64GB (2x32GB)
Audio
Audio Realtek ALC897 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors

DisplayPort 1.4
HDMI 2.1

Internal Connectivity
Expansion Slots

1 x M.2 Key E Vertical (Supports WiFi Modules)
1 x M.2, 22-80, PCIe Gen4x4/SATA3
1 x PCIe 4.0 x16
4 x SATA 6GB/s

SATA Support N/A
RAID Support via
Storage Mode Support
Internal I/O

1 x 24-pin (Power)
1 x 4-pin CHA_FAN connector
1 x 4-pin CPU Fan Connector
1 x 8-pin (Power)
1 x Chassis Water Pump/Fan Connector
1 x Front Panel Audio Header
1 x RGB Header
1 x Thunderbolt AIC Connector
1 x USB 2.0 Header
1 x USB 3.2 Gen1 Header

External Connectivity
Network Interface Type Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules

1 x 802.11ac WiFi + BT5
1 x 802.11ax WiFi + BT5.2
1 x Intel® I219V (Gigabit LAN)

Rear I/O Connectors

1 x BIOS Flashback Button
1 x DisplayPort 1.4
1 x Front Speaker Out
1 x HDMI 2.1
1 x Line In
1 x Mic-In
1 x PS/2 Keyboard/Mouse Combo
1 x RJ-45 with LED
2 x USB 2.0
2 x USB 3.2 Gen1 Type-A
2 x USB 3.2 Gen2 Type-A
2 x WiFi Antenna connectors

Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 170 x 170 mm
