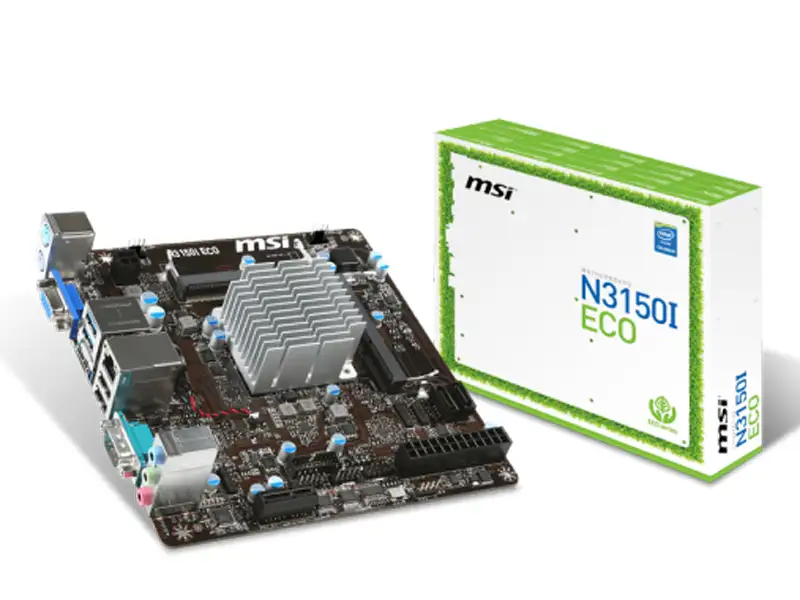

Matična ploča MSI N3150I ECO, Onboard, mini-ITX
Proizvod nije dobavljiv. Potražite neke druge modele koji su zamijenili Matična ploča MSI N3150I ECO, Onboard, mini-ITX
| Proizvođač: | MSI |
| Šifra: | 1291721 |
| Kataloški broj: | N3150I ECO |
| Jamstvo: | 36 |
Prosječna ocjena:
0,00
| Glasova:
0
|
| Ocijeni
ovaj proizvod
|
- Intel Celeron N3150 Processor Onboard
- Supports DDR3-1600 Memory
- USB 3.0 + SATA 6Gb/s
- ECO Performance: 100% performance, 24/7 stable and green
- Military Class 4: Top Quality & Stability
- 4K UHD Support: Ultra-high Definition Visual Experience
- Fast Boot: Quickly Boot Up & Enter OS in A Few Seconds
- M-Flash: Simply Update & Backup Your BIOS
- Live Update 6: Easily Update The Latest BIOS & Drivers
Specifications
CPU
- Supports Intel Celeron N3150 Processors for Socket BGA 1170
MEMORY
- 2× DDR3 / DDR3L SO-DIMM memory slots supporting up to 8GB
- Supports DDR3 1600/1333 MHz
- Dual channel memory architecture
ON-BOARD GRAPHICS
- 1× VGA port, supporting a max. resolution of 2560×1600@60Hz, 24bpp
- 1× HDMI port, supporting a max. resolution of 3840×2160@30Hz, 24bpp
SLOTS
- 1× PCIe 2.0 x1 slot (for half size)
ON-BOARD SATA
- 2× SATA 6Gb/s ports
USB
- 4× USB 2.0 ports (2 ports on the back panel, 2 ports available through the internal USB 2.0 connector)
- 4× USB 3.0 ports (2 ports on the back panel, 2 ports available through the internal USB 3.0 connector)
AUDIO
- Realtek ALC887 Codec
- 7.1-Channel High Definition Audio
LAN
- Realtek RTL8111G Gigabit LAN controller
INTERNAL I/O CONNECTORS
1× 24-pin ATX main power connector
1× 4-pin ATX 12V power connector
2× SATA 6Gb/s connectors
1× USB 2.0 connector (supports additional 2 USB 2.0 ports)
1× USB 3.0 connector (supports additional 2 USB 3.0 ports)
1× 4-pin CPU fan connector
1× 4-pin system fan connector
2× System panel connectors
1× Front panel audio connector
1× TPM connector
2× Serial port connectors
1× Chassis Intrusion connector
1× Clear CMOS jumper
BACK PANEL I/O PORTS
1x PS/2 keyboard port
1× PS/2 mouse port
1× VGA port
2× USB 3.0 ports
1× HDMI port
1× LAN (RJ45) port
2× USB 2.0 ports
1× Serial port
3× audio jacks
FORM FACTOR
- Micro-ITX Form Factor: 17.0×17.0 cm
| Osnovne karakteristike | |
|---|---|
| Socket: | Onboard |
| Format ploče: | mini ITX |
| Memorija: | DDR3 |
