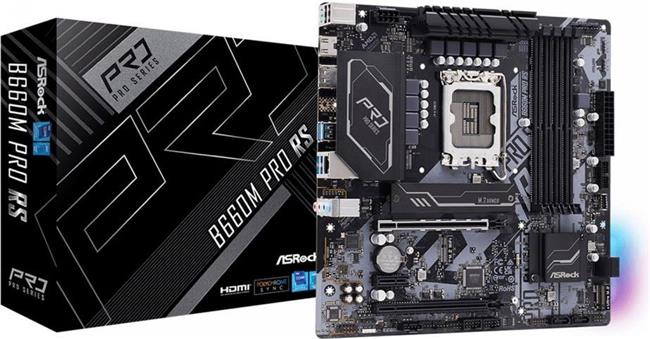

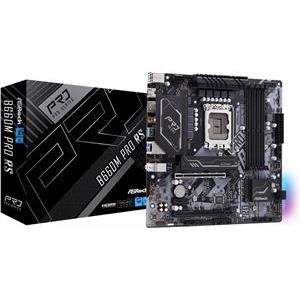

Matična ploča Asrock B660M Pro RS DDR4


Proizvođač: Asrock
Šifra: 1365698
Kataloški broj: 90-MXBGW0-A0UAYZ
Jamstvo: 24
Raspoloživost: Dobavljivo (Dobavljivo)
Prosječna ocjena: Ocjena 0 0,00 | Glasova: 0
  Ocijeni ovaj proizvod

117,70

Načini plaćanja online

Popust 10%
117,70 €

Transakcijski račun
Popust 9%
119,01 €

Kriptovalute
Popust 8%
120,32 €

Maestro, MasterCard, Visa
Popust 6%
122,93 €

Union, PBZ Maestro/Visa Inspire 2-6 rata
Popust 5%
124,24 €

Diners, ZABA Master/Visa 2-6 rata, ERSTE Master/Visa/Maestro 2-6 rata
Popust 4%
125,55 €

Diners 2-12 rata, PBZ Visa Inspire/Maestro 7-12 rata, PBZ Visa Premium 2-6 rata
Popust 3%
126,85 €

ZABA Master/Visa 7-12 rata
Popust 2%
128,16 €

ERSTE Master/Visa/Maestro 2-6 rata, PBZ Visa Premium 7-12 rata
Popust se ne obračunava
130,78 €

ZABA Master/Visa 13-24 rate, Diners 13-24 rate

Načini plaćanja u trgovini

Popust 10%
117,70 €

Novčanice, Transakcijski račun
Popust 9%
119,01 €

Maestro, MasterCard, Visa
Popust 7%
121,62 €

PBZ Maestro/Visa Inspire 2-6 rata
Popust 6%
122,93 €

RBA Master/Visa 2-12 rata
Popust 5%
124,24 €

Diners, ZABA kartice 2-6 rata, Diners 2-6 rata, ERSTE Maestro/Visa/Master 2-8 rata, PBZ Maestro/Visa Inspire 7-12 rata
Popust 4%
125,55 €

ZABA Master/Visa 7-12 rata, Diners 7-12 rata, PBZ Visa Premium 2-6 rata
Popust 3%
126,85 €

ERSTE Maestro/Visa/Master 9-12 rata
Popust 2%
128,16 €

Diners 13-24 rate, PBZ Visa Premium 7-12 rata
Popust se ne obračunava
130,78 €

ZABA Maestro/Visa 7-12 rata, ZABA Visa 13-24 rate, ZABA Master 13-36 rata, Diners 25-36 rata

*MBNET kartice (Maestro, Visa, Mastercard) kojima je moguće plaćanje na rate izdane od Slatinske banke, Istarske kreditne banke, Sberbanke, KentBank i Agram banke
**kod nonSEPA transakcija naplaćujemo naknadu banke

već od 3,63 €/mjesečno

Odabrali ste prikaz cijena za gotovinsko plaćanje - prikaži MPC




Formfaktor
µATX
Sockel
Intel 1700
Chipsatz
Intel B660
CPU-Kompatibilität
Core i-12000, Pentium Gold G7000, Celeron G6000
RAM
4x DDR4 DIMM, dual PC4-38400U/?DDR4-4800 (OC), max. 128GB (UDIMM)
Erweiterungsslots
1x PCIe 4.0 x16, 1x PCIe 3.0 x16 (x4), 1x PCIe 3.0 x1, 1x M.2/?M-Key (PCIe 4.0 x4, 2280/?2260/?2242), 1x M.2/?M-Key (PCIe 3.0 x4/?SATA, 2280), 1x M.2/?E-Key (PCIe/?Intel CNVi, 2230)
Anschlüsse extern
1x HDMI 2.1 (iGPU), 1x DisplayPort 1.4 (iGPU), 4x USB-A 3.0 (5Gb/?s, B660), 2x USB-A 2.0 (480Mb/?s), 1x Gb LAN (Intel I219-V), 3x Klinke, 1x PS/?2 Combo
Anschlüsse intern
1x USB-C 3.0 Key-A Header (5Gb/?s, B660), 1x USB 3.0 Header (5Gb/?s, 2x USB 3.0, B660), 2x USB 2.0 Header (480Mb/?s, 4x USB 2.0), 4x SATA 6Gb/s (B660), 1x TPM-Header, 1x Thunderbolt-Header 5-Pin, 1x Speaker-Header, 1x Chassis Intrusion-Header
Header Kühlung
1x CPU-Lüfter 4-Pin, 1x CPU-Lüfter/?Pumpe 4-Pin, 3x Lüfter/?Pumpe 4-Pin
Header Beleuchtung
1x 4-Pin RGB (+12V/?G/?R/?B, max. 3A), 3x 3-Pin ARGB (+5V/?DATA/?GND, max. 3A)
Buttons/Switches
N/?A
Audio
7.1 (Realtek ALC897)
Grafik
iGPU
Wireless
N/?A
RAID-Level
0/?1/?5/?10 (B660)
Multi-GPU
AMD 2-Way-CrossFireX (x16/?x4)
Stromanschlüsse
1x 24-Pin ATX, 1x 8-Pin EPS12V
VRM
16 virtuelle Phasen (14+2), 8 reale Phasen (7+1), PWM-Controller: RT3628AE (max. 9 Phasen)
MOSFETs CPU
14x 48A SM4508/?SM4373
MOSFETs SoC
2x 48A SM4508/?SM4373
Beleuchtung
RGB, 1 Zone (Seite rechts)
BIOS
1x 16MB (128Mb)
Besonderheiten
Audio+solid capacitors, Diagnostic LED (LED-Indikatoren), 1x M.2-Passivkühler, Onboard TPM 2.0 Unterstützung (Intel PTT)

Kliknite za više informacija o proizvodu
Osnovne karakteristike
Socket: 1700
Format ploče: mATX
CPU podrška: Intel 14. gen
Intel 13. gen
Intel 12. gen
Memorija: DDR4
Chipset: Intel B660


*Unatoč uloženom trudu da damo što bolji i točniji opis, slike i specifikacije, ne možemo garantirati da su svi navedeni podaci točni te ne odgovaramo za eventualne pogreške nastale u opisu proizvoda, slika ili specifikacija. Iste je potrebno provjeriti na stranicama proizvođača ili pošaljite upit našim djelatnicima da provjere.
Ukoliko na našoj stranici otkrijete neistinite odnosno neadekvatne informacije, molimo vas da nam to javite na prodaja[o]protis.hr
