CPU
CPU Socket Socket AM5
CPU Brand AMD
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer AMD
Supported Processors AMD Socket AM5 Ryzen 7000 Series Processors
64-bit Support Yes
Socket AM5

Rear Panel I/O Ports
USB Ports 1 x USB-C 3.1
1 x USB 3.1
2 x USB 3.0
6 x USB 2.0
HDMI Port 1 x HDMI 2.1
RJ-45 Ports 1 x RJ-45
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 1 x 3.5mm Jack
Microphone In Port 1 x 3.5mm Jack
Antenna Connector(s) 2 x SMA Antenna

Internal I/O Connectors
SATA Connectors 4 x SATA III
USB Connectors 1 x USB-C 3.2 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)
Speaker 1 x Speaker header
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
1 x CPU/Water Pump fan header
4 x Chassis/Water Pump fan headers
Thunderbolt Port(s) 1 x Thunderbolt AiC header (Supports ASRock Thunderbolt 4 AIC Card)
TPM Header 1 x SPI TPM header
Power Connector Port 1 x 24-pin ATX
1 x 8-pin EPS
1 x 4-pin EPS
Other Connectors 1 x M.2 slot, Key M, Type 2280 (PCIe Gen5)
1 x M.2 slot, Key M, Type 2260/2280 (PCIe Gen4)
1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen3 or SATA)
3 x 3-pin ARGB LED headers
1 x 4-pin RGB LED header

Memory
Memory Bus Speed Up to 6600+ (OC) MHz
Memory Type DDR5
Maximum RAM 128 GB
Memory Slot 4 x DIMM

Motherboard
Northbridge B650E
RAID Supported Yes
RAID Format RAID 0, 1, 10
SATA Supported Yes

Expansion
Number of PCI Express Slots 1 x PCI Express 5.0 x16 slot
1 x PCI Express 3.0 x16 slot (@ x4)
1 x PCI Express 4.0 x1 slot

Graphics Device
Integrated Graphics Supported Yes

Sound
Integrated Sound Realtek ALC897

Warranty
Warranty 3 Years

Network
Integrated Network Killer E3100G
Network Speeds Supported Up to 2.5 Gbps
Wireless LAN Yes (Wi-Fi 6E)
Wireless Network Speed Up to 2.4 Gbps
Bluetooth Yes
Bluetooth Version 5.2

System Requirements
Operating Systems Supported Microsoft Windows 11 64-bit

System
BIOS 256Mb AMI UEFI Legal BIOS with GUI support
Software Included (may be trial or restricted) Yes
Drivers Yes
SLi/Crossfire Features Supports AMD CrossFire

Physical
Form Factor ATX Motherboard
In The Box Motherboard
1 x User Manual
2 x SATA Data Cables
2 x ASRock WiFi 2.4/5/6 GHz Antennas
2 x Screws for M.2 Sockets
1 x Graphics Card Holder
Width 305 mm
Length 244 mm

Key Features
Motherboard Power Connectors 4 + 8-Pin
Motherboard Chipset AMD B650E
Thunderbolt No

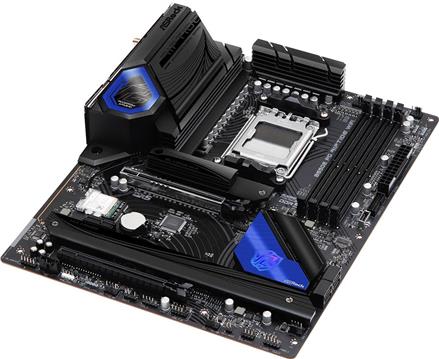

Motherboard Model ASRock B650E PG Riptide WiFi
WiFi Speed 2400 Mbps
USB 3.1 Support Yes
Internal USB3.0 Header Yes
Cooler Height mm
M.2 Support Yes
On-board RGB Control ASRock RGB LED
Memory Speed 6600 MHz
Skip Audio Test
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Internal USB Type-C Header Yes
Radiator Length mm
Microsoft Processor List
Power Requirement (auto) 70 W
Cooler count
Max Memory Speed Supported (Non-overclocked) 4800 MHz
Max Memory Speed Supported (overclocked) 6600 MHz
CPU Power Pins (female) 12
PCI Express Power Pins (female)
Total M.2 Slots 3
Maximum NVMe M.2 ports 3
Maximum SATA M.2 ports 1
PCI-e slots
SATA ports 4
No. of front USB2.0 ports supported 4
No. of front USB3.0 ports supported 2
No. of front USB-C ports supported 1
Firewire
IDE/EIDE Supported
SCSI/SAS Supported
Wireless Network Yes
Chipset Manufacturer AMD
Number of PCI Slots slot(s)
Number of PCI-X Slots slot(s)
Main Colour
Socket(s)
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 10 port(s)
SATA III Support Yes
USB 3.0 Support Yes
Multi GPU Support ATi CrossFire
VGA Connection No
DVI Connection No
HDMI Connection Yes
DisplayPort Connection No
Motherboard Form Factor ATX
