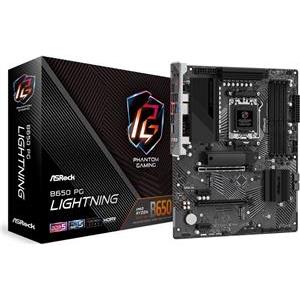

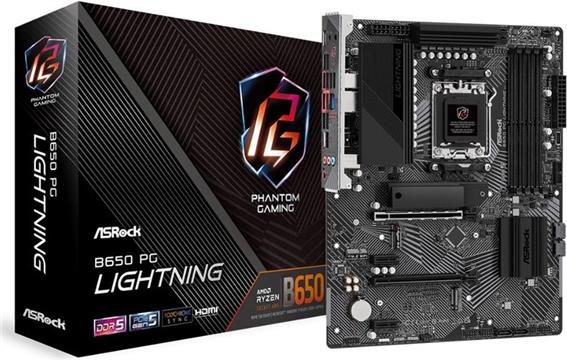

ASROCK B650 PG LIGHTNING ATX MB AM5 4xDIMM DDR5

CPU
CPU Socket Socket AM5
CPU Brand AMD
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer AMD
Supported Processors AMD Socket AM5 Ryzen 7000 Series Processors
64-bit Support Yes
Socket AM5

Rear Panel I/O Ports
USB Ports 1 x USB-C 3.2
7 x USB 3.0
4 x USB 2.0
HDMI Port 1 x HDMI 2.1
RJ-45 Ports 1 x RJ-45
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 1 x 3.5mm Jack
Microphone In Port 1 x 3.5mm Jack

Internal I/O Connectors
SATA Connectors 4 x SATA III
USB Connectors 1 x USB-C 3.1 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)
Speaker 1 x Speaker header
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
1 x CPU/Water Pump fan header
4 x Chassis/Water Pump fan headers
TPM Header 1 x SPI TPM header
Power Connector Port 1 x 24-pin ATX
2 x 8-pin EPS
Other Connectors 1 x M.2 slot, Key M, Type 2280 (PCIe Gen5)
2 x M.2 slots, Key M, Type 2280 (PCIe Gen4)
3 x 3-pin ARGB LED headers
1 x 4-pin RGB LED header

Memory
Memory Bus Speed Up to 6400+ (OC) MHz
Memory Type DDR5
Maximum RAM 128 GB
Memory Slot 4 x DIMM

Motherboard
Northbridge B650
RAID Supported Yes
RAID Format RAID 0, 1, 10
SATA Supported Yes

Expansion
Number of PCI Express Slots 2 x PCI Express 4.0 x16 slots (@ x16, x2)
2 x PCI Express 4.0 x1 slots

Graphics Device
Integrated Graphics Supported Yes

Warranty
Warranty 3 Years

Sound
Integrated Sound Realtek ALC897

Network
Integrated Network Dragon RTL8125BG
Network Speeds Supported Up to 2.5 Gbps
Wireless LAN No
Bluetooth No

System Requirements
Operating Systems Supported Microsoft Windows 11 64-bit

System
BIOS 256Mb AMI UEFI Legal BIOS with GUI support
Software Included (may be trial or restricted) Yes
Drivers Yes

Physical
Form Factor ATX Motherboard
In The Box Motherboard
1 x User Manual
2 x SATA Data Cables
3 x Screws for M.2 Sockets
Width 305 mm
Length 244 mm

Key Features
M.2 Support Yes
On-board RGB Control ASRock RGB LED
Memory Speed 6400 MHz
Skip Audio Test
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Internal USB Type-C Header Yes
Radiator Length mm
Microsoft Processor List
Power Requirement (auto) 70 W
Cooler count
Max Memory Speed Supported (Non-overclocked) 4800 MHz
Max Memory Speed Supported (overclocked) 6400 MHz
CPU Power Pins (female) 16
PCI Express Power Pins (female)
Total M.2 Slots 3
Maximum NVMe M.2 ports 3
PCI-e slots
SATA ports 4
No. of front USB2.0 ports supported 4
No. of front USB3.0 ports supported 2
No. of front USB-C ports supported 1
Firewire
IDE/EIDE Supported
SCSI/SAS Supported
Wireless Network No
Chipset Manufacturer AMD
Number of PCI Slots slot(s)
Number of PCI-X Slots slot(s)
Main Colour
Socket(s)
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 12 port(s)
SATA III Support Yes
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection No
DVI Connection No
HDMI Connection Yes
DisplayPort Connection No
Motherboard Form Factor ATX
Wake on LAN
Motherboard Power Connectors 8 + 8-Pin
Motherboard Chipset AMD B650
Thunderbolt No
Motherboard Model ASRock B650 PG Lightning
WiFi Speed Mbps
USB 3.1 Support Yes
Internal USB3.0 Header Yes
Cooler Height mm

Graphics
Graphics Chipset
