Kontroler za LED-matrix01 zaslon, Joy-it RB-MatrixCtrl


  large-image
Kontroler za LED-matrix01 zaslon, Joy-it RB-MatrixCtrl
Kliknite na sliku za povećanje
thumb thumb
Najpopularnije
Proizvođač: Joy-it
Šifra: 1353322
Kataloški broj: RB-MatrixCtrl
Jamstvo: 12
Raspoloživost: Dobavljivo (Dobavljivo)
isporuka 1-2 radnih dana
Navedeni rok isporuke je informativan te predstavlja uobičajeno vrijeme u kojem bi proizvod trebao biti spreman za isporuku, ukoliko u ovom trenutku zaprimimo uplatu.

*U navedeni rok se ne računaju subote i nedjelje, te državni praznici i ostali neradni dani. U slučaju slanja dostavnom službom nije uračunato vrijeme dostave.
Prosječna ocjena: Ocjena 0 0,00 | Glasova: 0
  Ocijeni ovaj proizvod

21,30 €

Načini plaćanja online

Popust 10%
21,30 €

Transakcijski račun
Popust 9%
21,54 €

Kriptovalute
Popust 8%
21,77 €

Maestro, MasterCard, Visa
Popust 6%
22,25 €

Union, PBZ Maestro/Visa Inspire 2-6 rata
Popust 5%
22,48 €

Diners, ZABA Master/Visa 2-6 rata, ERSTE Master/Visa/Maestro 2-6 rata
Popust 4%
22,72 €

Diners 2-12 rata, PBZ Visa Inspire/Maestro 7-12 rata, PBZ Visa Premium 2-6 rata
Popust 3%
22,96 €

ZABA Master/Visa 7-12 rata
Popust 2%
23,19 €

ERSTE Master/Visa/Maestro 2-6 rata, PBZ Visa Premium 7-12 rata
Popust se ne obračunava
23,67 €

ZABA Master/Visa 13-24 rate, Diners 13-24 rate

Načini plaćanja u trgovini

Popust 10%
21,30 €

Novčanice, Transakcijski račun
Popust 9%
21,54 €

Maestro, MasterCard, Visa
Popust 7%
22,01 €

PBZ Maestro/Visa Inspire 2-6 rata
Popust 6%
22,25 €

RBA Master/Visa 2-12 rata
Popust 5%
22,48 €

Diners, ZABA kartice 2-6 rata, Diners 2-6 rata, ERSTE Maestro/Visa/Master 2-8 rata, PBZ Maestro/Visa Inspire 7-12 rata
Popust 4%
22,72 €

ZABA Master/Visa 7-12 rata, Diners 7-12 rata, PBZ Visa Premium 2-6 rata
Popust 3%
22,96 €

ERSTE Maestro/Visa/Master 9-12 rata
Popust 2%
23,19 €

Diners 13-24 rate, PBZ Visa Premium 7-12 rata
Popust se ne obračunava
23,67 €

ZABA Maestro/Visa 7-12 rata, ZABA Visa 13-24 rate, ZABA Master 13-36 rata, Diners 25-36 rata

*MBNET kartice (Maestro, Visa, Mastercard) kojima je moguće plaćanje na rate izdane od Slatinske banke, Istarske kreditne banke, Sberbanke, KentBank i Agram banke
**kod nonSEPA transakcija naplaćujemo naknadu banke

već od 0,66 €/mjesečno

Odabrali ste prikaz cijena za gotovinsko plaćanje - prikaži MPC



Control board

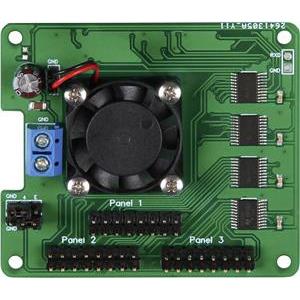

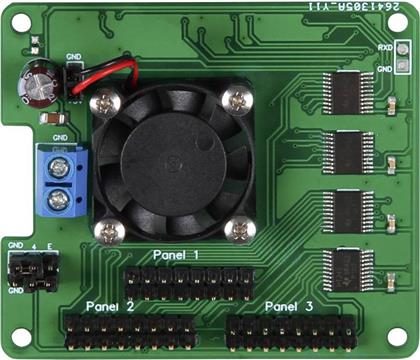

With the help of this expansion board for your Raspberry Pi you can control up to 3 RGB-LED-Matrix rows with the common HUB75 interface, e.g. our Joy-It RGB-LEDMatrix (LED-Matrix01).
In addition, a 25x25mm fan is installed and a heatsink is enclosed to ensure sufficient cooling of the Raspberry Pi.

Specifications

Function
Logic level converter from 3.3 V to 5V for controlling of up to 3 LED matrix rows
Passive and active cooling
Aluminium heatsink with a 25x25mm sized fan

Compatible with
Raspberry Pi 3A/B/A+/B+, 4B

Input voltage
5 Volt

Interfaces
3x HUB75 plugs

Data line E switchable with jumpers to Pin 4 or 8

Dimensions
65 x 56 x 26 mm

Weight
40 g

Items Shipped
Controller, heatsink, fan, 2 spacers, 6 screws and nuts, 4 flat washers , 2 jumpers

https://joy-it.net/en/products/RB-MatrixCtrl
