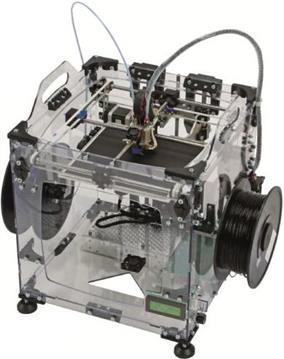

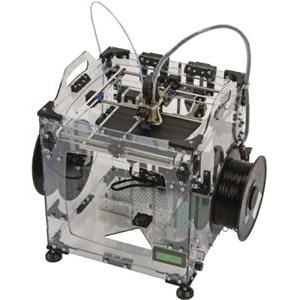

After a big success of the first 3D printer K8200, we are introducing the next generation Velleman 3D printer kit – Vertex (K8400).
Easy, accurate, affordable & open source – are the main advantages of this new 3D printer.

more info : http://www.vertex3dprinter.eu/

The next generation of 3D printer. Following the K8200 the "Most hackable 3D printer",
Velleman now introduce the new K8400 3D printer with the capability of printing with TWO filaments via TWO 0.35mm Nozzles.
Supplied in a similar robust construction featuring transparent wall protection and integrated SD card reader & controller
(also controllable via USB interface).
The Vertex is the next generation of easy, accurate, affordable and Open Source 3D printer self assembly kit.
Removable build plate & second extruder nozzle available as optional extras.

There are plenty of new features that make this printer extraordinary:

No soldering required
Modern housing
Prints PLA, ABS & HIPS – open filament policy
PLA 1,75mm – ensures finer layers of printed object
Nozzle 0,35 mm - possibility to use second nozzle (optional)

The Vertex is the next generation Velleman 3D printer kit.
Easy, accurate, affordable & Open Source.




tehnički podaci:

- Printing:
Print technology: Fused Filament Fabrication (FFF)
Layer resolution: standard: 0.1 mm (maximum: 0.2 mm - minimum: 0.05 mm)
Build plate: 215 x 240 mm (8.46" x 9.45")
Build volume: 180 x 200 x 190 mm (7" x 7.8" x 7.5")
Print speed: 30 mm/s - 120 mm/s
Travel speed: 30 mm/s - 300 mm/s
Build plate surface: Removable layer of BuildTak™
(consumable; also sold separately)
Filament diameter: 1.75 mm (accepts all filament spools with a mounting hole = 53 mm).
Open filament policy.
Prints: PLA, ABS
Testing with other materials in progress.
Nozzle 1&2 diameter: 0.35mm
One nozzle supplied. Second nozzle optional.
Distance between nozzles: 23.7 mm
Maximum nozzle operating temperature: 270 °C

Software:
Firmware: Modified Open Source Marlin 3D Printer
Firmware - user upgradable
Software: Repetier - CuraEngine - Slic3r
(RepRap compatible)

Hardware:
Dimensions: X Y Z 360 - 380 - 395 mm
(14" x 15" x 15.5") (without filament spools)
Frame: Polycarbonate panels and fibre reinforced molded ABS parts
Electrical:
Communication: USB 2.0 or SD card
Controller board: AVR ATmega2560 based
Dual head and heated bed capable
Display: 4 x 20 ch. blue LCD with white backlight
AC input: 100 - 240 VAC 50-60Hz 150W max.
