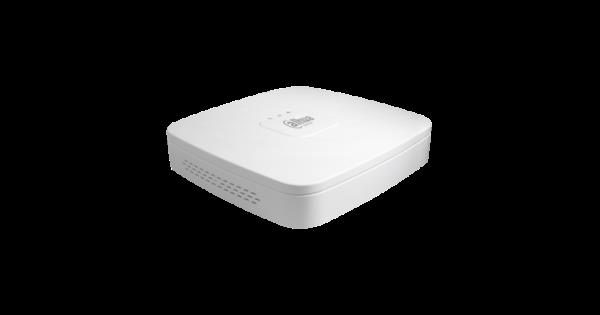

IP snimač Dahua NVR 2104-I 4 CH. WIZZSENSE Tehnologija. Prima 4 kamere rezolucije do 12 MP. 1 XHDD. Besplatna p2p mobilna aplikacija. > New 4.0 user interface> Remote surveillance, live view and video play on mobile phone App> Max. decoding capability: 4×1080P@30fps. Supports adaptive decoding> Supports mainstream cameras of ONVIF and RTSP protocols> H.264/.H265/Smart H.264+/Smart H.265+/MJPEG, H.265 auto switch> 1 VGA/1 HDMI simultaneous video output by default, the maximum resolution of HDMI is 4K; and non-simultaneous video output is also supported, the maximum resolution is 1080P> 1-channel face detection and recognition (AI by NVR); or 2-channel perimeter detection (AI by NVR); or 4-channel SMD (AI by NVR); up to 10 face databases and 5,000 face images> All-channel AI by camera: face detection and comparison, perimeter protection and SMD> Security baseline 2.1SystemMain ProcessorIndustrial-grade embedded processorOperating SystemEmbedded LinuxOperation InterfaceWeb/operating in local GUIVideoAccess Channel4 channelsNetwork Bandwidth80 Mbps for access, 80 Mbps for storage and 60 Mbps for forwarding.Resolution12M/8M/5M/4M/3M/2M/720P/D1Decoding Capability1ch 8MP@30fps4ch 1080P@30fpsVideo Output1 VGA/1 HDMI simultaneous video output by default, the maximum resolution of HDMI is 4KMulti-screen Display1/4Third Party Camera AccessOnvif, RTSPCompressionVideoH.264/.H265/Smart H.264+/Smart H.265+/MJPEGAudioPCM/G711A/G711U/G26/AACNetworkNetwork ProtocolHTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNSMobile Phone AccessAndroid, iOSInteroperabilityONVIF (profile T/profile S/profile G), CGI, SDKBrowserChrome, IE9 or above, FirefoxRecord PlaybackMulti-channel PlaybackUp to 4 channels playbackRecord ModePriority of record mode: Manual recording > alarm recording > motion detection recording > timed recordingStorageLocal HDD and networkBackupUSB devicePlayback Function1. Play, pause, stop, fast forward, fast backward, rewind, play by frame2. Full screen, backup (cut/file), partially enlarge, audio on/offSMD PlusPerformance4 channelsAI SearchSearch by target classification (Human, Vehicle)Face RecognitionPerformanceMax 8 face pictures/sec processing1 channel video stream face recognitionStranger ModeDetect strangers' faces (not in device's face database). Similarity threshold can be set manually.AI SearchUp to 8 target face images search at same time, similarity threshold can be set for each target face image.Database ManagementUp to 10 face databases with 5,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries®ions and state can be added to each face picture.Database ApplicationEach database can be applied to video channels independently.Trigger EventsBuzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation, etc.Alarm LinkageVideo recording, snapshot, log, preset, tourPerimeter ProtectionPerformance2 channelsObject classificationHuman/Vehicle secondary recognition for tripwire and intrusionAI SearchSearch by target classification (Human, Vehicle)AlarmGeneral AlarmMotion detection, privacy masking, video loss, PIR alarm, IPC alarmAnomaly AlarmFront-end device going offline, storage error, full storage, IP conflict, MAC conflict, login lock, network security anomalyAlarm LinkageVideo recording, snapshot, log, preset, tourExternal PortHDD1 SATA port, up to 6 TB. The maximum HDD capacity varies with environment temperatureUSB2 rear USB 2.0 portsHDMI1VGA1Network1 RJ–45 port (10/100 Mbps)RCA Input1RCA Output1General ParameterPower SupplyDC12V, 1.5APower ConsumptionTotal output of NVR is ? 10W (without HDD)Net Weight0.45kg (0.99 lb)Gross weight1.07kg (3.04 lb)Product Dimensions204.6 mm × 206.4 mm × 48.1 mm (W × L × H)8.06 inch × 8.13 inch × 1.89 inch (W × L × H)Package Dimensions96 mm × 364 mm × 261 mm (W × L × H)3.78 inch × 14.33 inch × 10.28 inch (W × L × H)Operating Temperature-10°C to 50°C (+14°F to +113°F)Storage Temperature0°C to 40°C (+32°F to +104°F)Operating Humidity10%–93%Storage Humidity30%–85%Operating Altitude3000 m (9843 ft)InstallationDesktop mountingCertificationsCE/FCC
