Compatibility:
Intel:
Socket LGA775
Socket LGA1150
Socket LGA1151
Socket LGA1155
Socket LGA1156
Socket LGA1366
Socket LGA2011 / 2011-v3
Socket LGA2066

AMD:
Socket AM2
Socket AM2+
Socket AM3
Socket AM3+
Socket AM4
Socket FM1
Socket FM2
Socket FM2+


Overall Dimensions WxHxD:
130 x 154,5 x 110 mm / 5.12 x 6.08 x 4.33 inch

Weight:
890 g / 31.4 oz

Accessory:
Mounting parts for Intel and AMD sockets, fan, fan clips, thermal grease, installation manual.

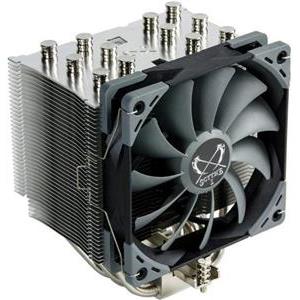

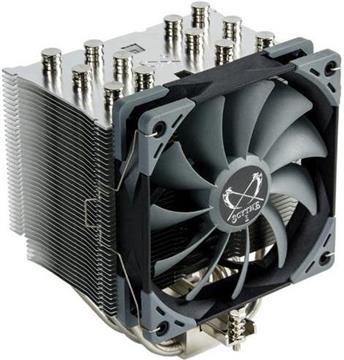

Asymmetric design
Ram modules with large passive heat sinks are no problem for the Mugen 5 Rev. B. Its heatpipes are gently sloped backwards so that the radiator is not centered directly above the baseplate, but slightly offset. This asymmetric design allows unrestricted access to the memory banks.

Kaze Flex 120 PWM Fan
The Mugen 5 Rev. B is equipped with a PWM fan with a control range of 300 to 1,200 RPM from the newly developed Kaze Flex series to ensure a high level of stability and an average lifespan of 120,000 hours. The self-contained liquid bearing (Sealed Precision FDB) reduces friction and wear to a minimum with the help of a special oil film. Rubberized pads have a decoupling effect and prevent the transmission of any vibrations.

H.P.M.S. II (Hyper Precision Mounting System II)
The updated Hyper Precision Mounting System II now features full compatibility to AMD®s new AM4 platform. A preassembled mounting bar simplifies the installation process, while spring-loaded screws prevent uneven pressure distribution. The Mugen 5 Rev. B package also includes an extra long screwdriver for easy mounting.

Dual Fan Mount Structure
Like its predecessors, the Mugen 5 Rev. B was designed to mount a second fan (not included). This leads to an increased cooling performance by making use of the push / pull principle. A second set of fan-clips is included.
