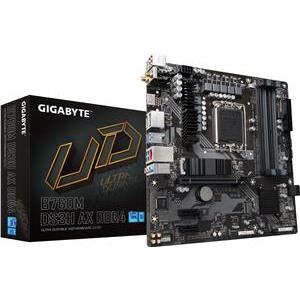

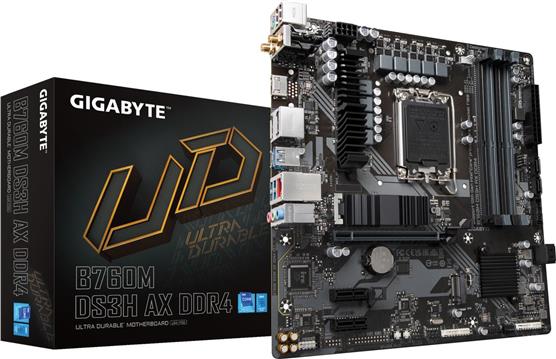

GIGABYTE B760M DS3H AX DDR4, DDR4, SATA3, USB3.2Gen2, DP, WiFi, LGA1700 mATX
| Proizvođač: | Gigabyte |
| Šifra: | 1391975 |
| Kataloški broj: | B760M DS3H AX DDR4 |
| Jamstvo: | 36 |
| Raspoloživost: |
(Dobavljivo)
|
Prosječna ocjena:
0,00
| Glasova:
0
|
| Ocijeni
ovaj proizvod
|
138,50 €
**kod nonSEPA transakcija naplaćujemo naknadu banke
već od 4,27 €/mjesečno
Odabrali ste prikaz cijena za gotovinsko plaćanje - prikaži MPC
SOCKET : INTEL LGA 1700 FOR PROCESSORS : 13th/ 12th Generation Core i7/i5/i3/Pentium/Celeron FORMAT : mATX format 24.4 cm x 24.4 cm CONNECTION CHIP : INTEL B760 MEMORY : 4 x DDR4 DIMM ECC/non-ECC 5333(OC)/ 5133(OC)/ 5000(OC)/ 4933(OC)/ 4800(OC)/ 4700(OC)/ 4600(OC)/ 4500(OC)/ 4400 (OC)/ 4300(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3666(OC)/ 3600(OC)/ 3466 (OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz) up to a total capacity of 128GB, dual channel and XMP support GRAPHICS : YES - via CPU RAID : RAID 0, RAID 1, RAID 5, and RAID 10 EXPANSION SLOTS : 1 x PCI Express 4.0/ 3.0 x16 2 x PCI Express 3.0 x1 NETWORK CARD : Realtek 2.5GbE LAN chip + AMD Wi-Fi 6E RZ608 (MT7921K) WIFI a, b, g, n, ac, ax + BLUETOOTH 5.2 SOUND CARD : Realtek codec High Definition Audio (2/4/5.1/7.1-channel) INTERNAL CONNECTIONS : 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper EXTERNAL CONNECTIONS : 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (2T2R) 1 x HDMI port 2 x DisplayPorts 3 x USB 3.2 Gen 1 ports 1 x USB Type-C® port, with USB 3.2 Gen 2 support 1 x RJ-45 port 3 x audio jacks ADDITIONAL : iTE® I/O Controller Chip H/W Monitoring Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control BIOS 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Bundled Software Norton® Internet Security (OEM version) LAN bandwidth management software Manufacturer's website: https://www.gigabyte.com/Motherboard/B760M-DS3H-AX-DDR4-rev-1x#kf
| Osnovne karakteristike | |
|---|---|
| Socket: | 1700 |
| Format ploče: | mATX |
| CPU podrška: |
Intel 14. gen Intel 13. gen Intel 12. gen |
| Memorija: | DDR4 |
| Broj utora: | 4 |
| Chipset: | Intel B760 |
| Ostale karakteristike | |
| Boja: | Crna |
*Unatoč uloženom trudu da damo što bolji i točniji opis, slike i specifikacije, ne možemo garantirati da su svi navedeni podaci točni te ne odgovaramo za eventualne pogreške nastale u opisu proizvoda, slika ili specifikacija. Iste je potrebno provjeriti na stranicama proizvođača ili pošaljite upit našim djelatnicima da provjere.
Ukoliko na našoj stranici otkrijete neistinite odnosno neadekvatne informacije, molimo vas da nam to javite na prodaja[o]protis.hr
Za odabrani proizvod nije unesen niti jedan komentar.
