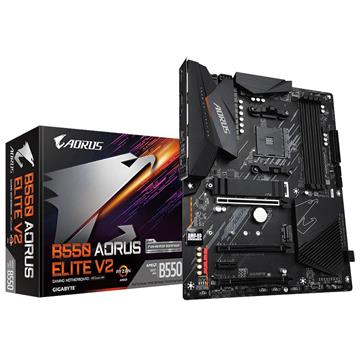

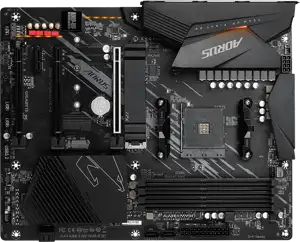

GIGABYTE B550 AORUS ELITE V2, DDR4, SATA3, USB3.2Gen2, DP, AM4 ATX
| Proizvođač: | Gigabyte |
| Šifra: | 1345697 |
| Kataloški broj: | B550 AORUS ELITE V2 |
| Jamstvo: | 36 |
| Raspoloživost: |
(Raspoloživo)
|
Prosječna ocjena:
0,00
| Glasova:
0
|
| Ocijeni
ovaj proizvod
|
136,00 €
**kod nonSEPA transakcija naplaćujemo naknadu banke
već od 4,20 €/mjesečno
Odabrali ste prikaz cijena za gotovinsko plaćanje - prikaži MPC
PODNOŽJE: AMD AM4ZA PROCESORJE: AMD RYZENFORMAT: ATX format 30.5 cm x 24.4 cmVEZNI ČIP: AMD B550POMNILNIK:4 x DDR4 DIMM ECC/non-ECC do 4733 MHz (odvisno od procesorja) do skupno 128GB kapacitete, dual channel in Extreme Memory Profile (XMP) podporaGRAFIKA: DA - preko APURAID: DA (0,1,10)RAZŠIRITVENE REŽE:1 x PCI Express 3.0/4.0 x161 x PCI Express 3.0 x22 x PCI Express 3.0 x1MREŽNA KARTICA: Realtek 2.5GbE LAN chip (10/100/1000Mbit/2.5Gbit) ZVOČNA KARTICA: Realtek ALC1200 codec High Definition Audio (2/4/5.1/7.1-channel)NOTRANJI PRIKLJUČKI:1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x CPU fan header1 x water cooling CPU fan header3 x system fan headers1 x CPU cooler LED strip/RGB LED strip header2 x addressable LED strip headers2 x RGB LED strip headers1 x front panel header1 x front panel audio header1 x USB Type-C™ port, with USB 3.2 Gen 1 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)1 x Clear CMOS jumperZUNANJI PRIKLJUČKI:1 x DisplayPort1 x HDMI port2 x USB 3.2 Gen 2 Type-A ports (red)3 x USB 3.2 Gen 1 ports2 x USB 2.0/1.1 ports1 x Q-Flash Plus button1 x RJ-45 port1 x optical S/PDIF Out connector5 x audio jacksDODATNO:
iTE® I/O Controller ChipH/W MonitoringVoltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionOverheating warningFan fail warningFan speed controlBIOS1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Unique FeaturesSupport for APP Center@BIOSEasyTuneFast BootGame BoostON/OFF ChargeRGB FusionSmart BackupSystem Information ViewerSupport for Q-Flash PlusSupport for Q-FlashSupport for Xpress InstallBundled SoftwareNorton® Internet Security (OEM version)Realtek® 8125 Gaming LAN Bandwidth Control Utility
Spletna stran proizvajalca: https://www.gigabyte.com/Motherboard/B550-AORUS-ELITE-V2-rev-10#kf
AMD B550 AORUS Motherboard with True 12+2 Phases Digital VRM, Enlarged Surface Heatsinks, PCIe 4.0 x16 Slot, Dual PCIe 4.0/3.0 x4 M.2 with One Thermal Guard, 2.5GbE LAN, RGB FUSION 2.0, Q-Flash Plus
Supports AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
12+2 Phases Digital Twin Power Design with 50A DrMOS
Advanced Thermal Design with Enlarged Surface Heatsinks
Ultra Durable™ PCIe 4.0 x16 Slot
Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with One Thermal Guard
AMP-UP Audio with ALC1200 and WIMA Capacitors
Blazing Fast 2.5GbE LAN with Bandwidth Management
Front USB 3.2 Gen1 Type-C™ and DisplayPort & HDMI for Multiple Display
RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Pre-installed IO Shield for Easy and Quick Installation
| Osnovne karakteristike | |
|---|---|
| Socket: | AM4 |
| Format ploče: | ATX |
| CPU podrška: | AMD Ryzen |
| Memorija: | DDR4 |
| Broj utora: | 4 |
| Chipset: | AMD B550 |
| Ostale karakteristike | |
| Boja: | Crna |
*Unatoč uloženom trudu da damo što bolji i točniji opis, slike i specifikacije, ne možemo garantirati da su svi navedeni podaci točni te ne odgovaramo za eventualne pogreške nastale u opisu proizvoda, slika ili specifikacija. Iste je potrebno provjeriti na stranicama proizvođača ili pošaljite upit našim djelatnicima da provjere.
