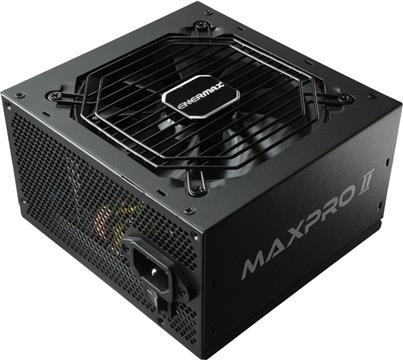

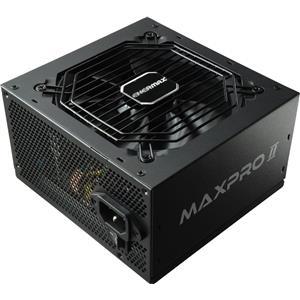

Enermax 500W MaxPro II, ATX 2.3, 80+, aktivan PFC, 2×PCIe, 5×SATA, 24-pina, 120mm ventilator
Proizvod nije dobavljiv. Potražite neke druge modele koji su zamijenili Enermax 500W MaxPro II, ATX 2.3, 80+, aktivan PFC, 2×PCIe, 5×SATA, 24-pina, 120mm ventilator
| Proizvođač: | Enermax |
| Šifra: | 1340746 |
| Kataloški broj: | EMP500AGT-C |
| Jamstvo: | 36 |
Prosječna ocjena:
0,00
| Glasova:
0
|
| Ocijeni
ovaj proizvod
|
- The Enermax MAXPRO II series is one of Enermaxs longrunner power supplies
- Developed specifically for the European market, MAXPRO II is characterized by low noise and efficient operation
- With 87% peak efficiency (80 PLUS 230V EU certified) and a standby consumption of less than 0.5 watts, the power supply meets the European Union eco-design directive 2013 ErP Lot 6 and 2014 ErP Lot 3 and the European Union regulation no. 617/2013
- The 120 mm high pressure fan with the patented Twister Bearing ensures quiet and efficient cooling
- The SafeGuard multiple safety system protects the power supply and system from damage
- The MAXPRO II power supplies are true longrunners and are designed for 24-hour continuous operation at an ambient temperature of 40C
Technical Specifications
OVERVIEW
- PSU Design: Single rail, non modular
- PSU Length: 140mm
- Intel ATX12V: 2.3
- Non-Stop 24/7: @ 40C
- 2010 ErP Lot 6: Yes
- 2013 ErP Lot 6: Yes
- 2014 ErP Lot 3: Yes
- EU regulation no. 617/2013: Yes
- Intel C6/C7: Yes
- Fan Size: 120mm
- Fan Technology: Twister Bearing, 160.000h MTBF
- Protections: SCP, OVP, UVP, OPP, SIP
* SCP: short circuit protection, OVP: over voltage protection, UVP: under voltage protection, OPP: over power protection, SIP: surges and inrush current protection
- Certifications: CB, CE, CCC, KCC, RCM
- Included in the delivery: PSU, AC cord, 4 screws, user manual
POWER DISTRIBUTION
- AC Input Voltage: 200-240VAC, 47-63Hz
- AC Input Current: 4A
- DC Output:
* +3.3V - 18A - 110W
* +5V - 18A - 110W
* +12V - 38A - 456W
* -12A - 0.3A - 3.6W
* 5V - 2.5A - 12.5W
- Total Power: 500W
CABLES & CONNECTORS
- Mainboard 24-pin: 1× 50cm
- CPU 4+4-pin: 1× 60cm
- PCI-E 6+2-pin (8-pin): 2× 60cm
- SATA: 5×
- 4-pin Molex: 3×
EFFICIENCY & NOISE LEVEL
- 10% load @ 230V: Efficiency: 81%, Noise Level: 14.7dB(A)
- 20% load @ 230V: Efficiency: 86%, Noise Level: 14.7dB(A)
- 50% load @ 230V: Efficiency: 87%, Noise Level: 17.3dB(A)
- 100% load @ 230V: Efficiency: 88%, Noise Level: 25.2dB(A), Power Factor: 0.99
OTHER
- Product Dimensions: 140×150×86 mm
- Product Weight: 1.7 kg
| Osnovne karakteristike | |
|---|---|
| Snaga [W]: | 500 |
| Modularno: | Ne |
Učinkovitost:
|
Basic (82%) |
