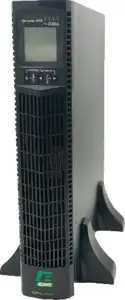

Elsist UPS UPSERVER 2.0 2000VA/1350W, On-line double conversion, DSP, rack/tower, LCD
| Proizvođač: | Elsist |
| Šifra: | 1335099 |
| Kataloški broj: | UPSERVER2.0 |
| Jamstvo: | 24 |
| Raspoloživost: |
(Dobavljivo)
|
Prosječna ocjena:
0,00
| Glasova:
0
|
| Ocijeni
ovaj proizvod
|
598,00 €
**kod nonSEPA transakcija naplaćujemo naknadu banke
-10% za gotovinu
već od 16,61 €/mjesečno
*Za prikaz cijena sa popustom (-10%) kliknite ovdje
- UPServer 2.0 series is is the ultimate solution to protect Server and Data Center
- It has an output power capability of 2000VA, which is suited to supply 90% of the critical loads in IT applications
- It may be configured either in rack or tower version and is based on a On-Line double conversion DSP (Digital Signal Processor) technology
- UPServer 2.0 may increase its autonomy time by adding battery packs
- USB, RS232 communication ports and filtered RJ45 port are available by default
- EPO contact is present by default, too. SNMP card and Realy card are available as option. Input and Output with IEC cables are connected for an easy and quick installation
- UPServer 2.0 is the best cost effective solution for your IT system
TECHNICAL DATA
INPUT DATA
- Power: 2000 VA / 1350W
- Voltage: 230V
- Selectable Input Voltage
: 200V/208V/220V/230V/240V
- Voltage range at 100% load: 160 - 290 Vac
- Nominal Frequency: 50/60 Hz auto-sensing
- Frequency range: 45–55Hz (50Hz)/55-65Hz (60Hz) before switching to battery
- Bypass voltage range:
* +5%,+10%,+15%,+25% (+25% by default)
* -20%,-30%,-45%(-45% by default)
- Battery Voltage: IEC320 C13-10A
- Power UPS: IEC320 C14-10A
OUTPUT DATA
- Nominal value: 200/208/220/230/240V (programmable or auto-sensing)
- Frequency: 50 or 60 Hz, auto-sensing
- Overload (Normal operation):
* 108% +/-5% - 150% +/-5%: Load transfers to Fault mode after 30 sec
* 150% +/-5% - 200% +/-5%: Load transfers to Fault mode after 300 msec.
* 200% +/-5%: Load transfers to Fault mode after 20 msec.
- Overload (Bypass mode):
* 100% +/-5% - 130% +/-5%: UPS switch to Fault after 20'
* 130% + /-5% - 150% +/-5%: UPS switch to Fault after 2'
* 150% +/-5% - 200% +/-5%: UPS switch to Fault after 15sec.
* 200% +/-5%: UPS switch to Fault after 140 ms.
- Overload (Battery mode):
* 108% +/-5% - 150% +/-5%: UPS switch to Fault after 30 sec.
* 150% +/-5% - 200% +/-5%: switch to Fault after 300 ms.
* 200% +/-5%: UPS switch to Fault after 20 ms.
- Output waveform: Sinusoidal
- Harmonic distortion:
*
| Zaštita PGR 5 godina (2+3) - 60,00 € |
| Osnovne karakteristike | |
|---|---|
| Izlazna snaga [VA]: | 2.000 |
| Izlazna snaga [W]: | 1.350 |
Tehnologija:
|
SmartUPS |
