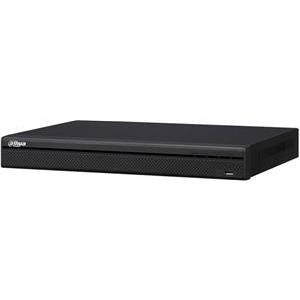

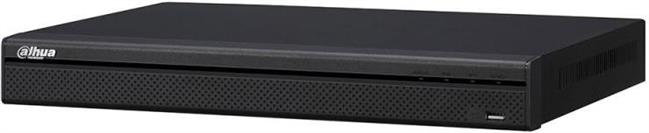

Dahua XVR 5232AN-X   32 CH. XVR . Prima do 32 kamere 5 MP   ili 32 X IP kamere do 6 MP. HDMI 4K  i VGA izlaz . H.265+ kompresija za duplo duže spremanje na HDD. Prima 2X HDD. Besplatna P2P Dahua mobilna aplikacija, Main ProcessorEmbedded ProcessorOperating SystemEmbedded LINUXVideo and AudioAnalog Camera Input32 Channel, BNCHDCVI Camera5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fpsAHD Camera5MP, 4MP, 1080P@25/30, 720P@25/30fpsTVI Camera5MP, 4MP, 1080P@25/30, 720P@25/30fpsCVBS CameraPAL/NTSCIP Camera Input32 Channel, each channel up to 6MPAudio In/Out1/1, RCATwo-way TalkReuse audio in/out, RCARecordingCompressionH.265+/H.265/H.264+/H.264Resolution5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIFRecord RateMain stream:the 1st & 2nd channels 5M-N(1~10fps), other channels 4M-N/1080P(1~15fps); 1080N/720P/960H/D1/CIF (1~25/30fps)Sub stream: D1/CIF(1~15fps)Bit Rate32Kbps ~ 6144Kbps Per ChannelRecord ModeManual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, StopRecord Interval1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 secAudio CompressionAAC(only for the 1st channel), G.711A, G.711U, PCMAudio Sample Rate8KHz, 16 bit Per ChannelAudio Bit Rate64Kbps Per ChannelDisplayInterface1 HDMI ,1 VGA, 1 TVResolutionHDMI:3840×2160, 2560×1440, 1920×1080, 1280×1024,1280×720VGA: 1920×1080, 1280×1024, 1280×720Multi-screen Display1/4/8/9/16/25/36OSDCamera title, Time, Video loss, Camera lock, Motion detection, RecordingNetworkInterface1 RJ-45 Port (1000M)Network FunctionHTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)Max. User Access128 usersSmart PhoneiPhone, iPad, AndroidInteroperabilityONVIF 16.12, CGI ConformantVideo Detection and AlarmTrigger EventsRecording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen TipsVideo DetectionMotion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and DiagnosisAlarm inputN/ARelay OutputN/APlayback and BackupPlayback1/4/9/16Search ModeTime /Date, Alarm, MD and Exact Search (accurate to second)Playback FunctionPlay, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital ZoomBackup ModeUSB Device/NetworkStorageInternal HDD2 SATA Ports, up to 10TB capacityeSATAN/AAuxiliary InterfaceUSB1 USB 2.0 , 1 USB 3.0RS232N/ARS4851 Port, for PTZ ControlElectricalPower SupplyDC12V/5APower Consumption(Without HDD)<25WConstructionDevice Dimensions1U, 375mm×287mm×53mm (14.8" x 11.3" x 2.1")Device with PFH101Rack Mount Tray483mmx281mmx56mm (19.0"x11.1"x2.2")Net Weight(without HDD)2.0kg (4.4 lb)Gross Weight3.3kg (7.3 lb)InstallationDesktop installationEnvironmentalOperating Conditions-10°C ~ +55°C (+14°F ~ +131°F), 10%~ 90% RHStorage Conditions-20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RHThird-party SupportThird-party SupportDahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and moreCertificationsCertificationsFCC: Part 15 Subpart BCE: CE-LVD: EN 60950-1/IEC 60950-1CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024UL: UL 60950-1

Za odabrani proizvod nije definirana specifikacija.

Za odabrani proizvod nije unesen niti jedan komentar.
