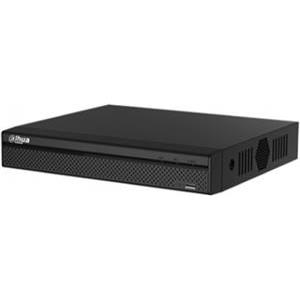

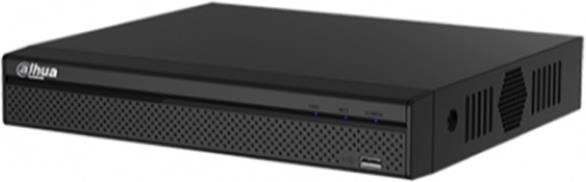

Dahua XVR 1B08 4CH do 2 MP. H.265+ video kompresija.8 kanala  do 2 MP CVI/TVI/AHD/CVBS + 2 X IP kamera do 6 MP. 8 Channel Penta-brid 1080N/720P Cooper 1U Digital Video Recorder> H.265+/H.265 dual-stream video compression> Supports HDCVI/AHD/TVI/CVBS/IP video inputs> Max 5/ channels IP camera inputs, each channel up to 2MP/6MP; Max 20/40Mbps Incoming Bandwidth> Long transmission distance over coax cable> Supports 1 SATA HDD, up to 6TBSystemMain ProcessorEmbedded ProcessorOperating SystemEmbedded LINUXVideo and AudioAnalog Camera Input8 Channel, BNCHDCVI Camera8CH: 1080P@25/30fps, 720P@25/30fpsAHD Camera1080P@25/30, 720P@25/30fpsTVI Camera1080P@25/30, 720P@25/30fpsCVBS CameraPAL/NTSCIP Camera Input8CH: 8+2, each channel up to 6MPAudio In/Out1/1, RCATwo-way TalkReuse audio in/out, RCARecordingVideo CompressionH.265+/H.265/H.264+/H.264Resolution1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIFRecord RateMain Stream:4CH: All channels 1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF(1~25/30fps)8CH: the 1st channel 1080N/720P(1~25/30fps), others 1080N/720P(1~15fps); 960H/D1/HD1/BCIF/CIF/QCIF(1~25/30fps)Sub stream:4CH: CIF/QCIF (1~15fps)8CH: CIF/QCIF (1~7fps)Video Bit Rate32Kbps ~ 4096Kbps Per ChannelRecord ModeManual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, StopRecord Interval1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 secAudio CompressionG.711A, G.711U, PCMAudio Sample Rate8KHz, 16 bit Per ChannelAudio Bit Rate64Kbps Per ChannelDisplayInterface1 HDMI ,1 VGAResolution1920×1080, 1280×1024, 1280×720Multi-screen DisplayWhen IP extension mode not enabled:4CH: 1/48CH: 1/4/8/9When IP extension mode enabled:4CH: 1/4/68CH: 1/4/8/9/16OSDCamera title, Time, Video loss, Camera lock, Motion detection, RecordingNetworkInterface1 RJ-45 Port (100M)Network FunctionHTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter ,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)Max. User Access128 usersSmart PhoneiPhone, iPad, AndroidInteroperabilityONVIF 16.12, CGI ConformantVideo Detection and AlarmTrigger EventsRecording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen TipsVideo DetectionMotion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and DiagnosisAlarm inputN/ARelay OutputN/APlayback and BackupPlayback4CH: 1/48CH: 1/4/9Search ModeTime /Date, Alarm, MD and Exact Search (accurate to second)Playback FunctionPlay, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital ZoomBackup ModeUSB Device/NetworkStorageInternal HDD1 SATA Port, up to 6TB capacityeSATAN/AAuxiliary InterfaceUSB2 USB 2.0RS232N/ARS485N/AElectricalPower SupplyDC12V/1.5APower Consumption(Without HDD)<10WConstructionDimensionsCooper 1U, 197mm×192mm×41mm (7.8“×7.6”×1.6“)Net Weight(without HDD)0.54kg (1.19lb)0.56kg (1.23lb)Gross Weight0.93kg (2.05lb)InstallationDesktop installationEnvironmentalOperating Conditions-10°C ~ +45°C (+14°F ~ +113°F), 10~ 90% RHStorage Conditions-20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RHThird-party SupportThird-party SupportDahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and moreCertificationsCertificationsFCC: Part 15 Subpart BCE: CE-LVD: EN 60950-1/IEC 60950-1CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024UL: UL 60950-1
