Features

Full tower chassis with 3 modes: Standard/ Rotate/ Dual-System
Capability to support an EEB motherboard and an ITX motherboard
Supports up to 3×480 + 1×360 radiators and a maximum of 16 fans
Two reservoir plates accommodate large D5/ DDC pump
Stores up to 16 storage drives at drive cages and trays
Modular removable brackets offer flexibility for builds
Cable management friendly with 7 Velcro straps

Specifications

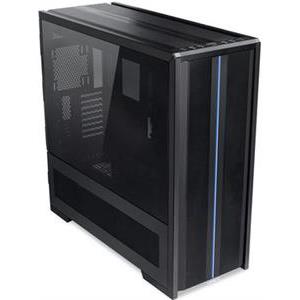

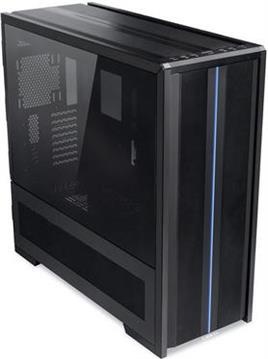

PRODUCT NAME: LIAN LI V3000 PLUS
MODEL: V3000PX
DIMENSIONS: (D) 678.5mm x (W) 279mm x (H) 674mm
COLOR: Black
MATERIALS:

Aluminum
Steel
4.0mm Dark Tinted Tempered Glass (right side)
4.0mm Tinted Tempered Glass (left side)


MOTHERBOARD SUPPORT:

Standard

EEB/E-ATX/ATX/Micro-ATX/Mini-ITX


Rotated

EEB/E-ATX/ATX/Micro-ATX/Mini-ITX


Dual System

System 1 – EEB/E-ATX/ATX/Micro-ATX/Mini-ITX
System 2 – Mini-ITX




FAN SUPPORT

Standard

Front:4 x 120mm or 3 x 140mm
Top:4 x 120mm or 3 x 140mm or 2 x 200mm
Above PSU Chamber:3 x 120mm or 3 x 140mm
Bottom side:4 x 120mm or 3 x 140mm
Rear: 1 x 120mm or 1 x 140mm


Rotated

Front:4 x 120mm or 3 x 140mm
Top:4 x 120mm or 3 x 140mm or 2 x 200mm
Bottom side:4 x 120mm or 3 x 140mm
Rear: 3 x 120mm or 2 x 140mm
Above PSU Chamber: 1 x 120mm or 1 x 140mm


Dual System

Front:4 x 120mm or 3 x 140mm
Top:4 x 120mm or 3 x 140mm or 2 x 200mm
Above PSU Chamber:2 x 120mm or 2 x 140mm
Bottom side:4 x 120mm or 3 x 140mm (without System 2 GPU)
Rear: 1 x 120mm or 1 x 140mm




RADIATOR SUPPORT

Standard

Front:480mm or 420mm
Top:480mm or 420mm
Above PSU Chamber:360mm or 420mm
Bottom side:480mm or 420mm


Rotated

Front:480mm or 420mm
Top:480mm or 420mm
Bottom side:480mm or 420mm
Rear: 360mm or 280mm


Dual System

Front:480mm or 420mm
Top:480mm
Above PSU Chamber:240mm or 280mm
Bottom side:480mm or 420mm (without System 2 GPU)




PSU SUPPORT

System 1 – ATX (Max 220mm)
System 2 – SFX-L/SFX


GPU LENGTH CLEARANCE

Standard

Max 589mm


Rotated

Max 358mm


Dual System

System 1 – Max 589mm
System 2 – Max 320mm (Width max 125mm)




CPU COOLER HEIGHT CLEARANCE

System 1 – Max 198mm
System 2 – Max 80mm


DRIVE SUPPORT

Drive Cage:8 × 2.5” SSD or 8 × 3.5” HDD
Side:4 × 2.5” SSD
Behind MB tray: 4 × 2.5” SSD


EXPANSION SLOT

System 1 – 8
System 2 – 3 (at PSU shroud, with optional riser cable)


I/O PORTS

System 1

1 x Power Button
1 x Reset Button
1 x Light Color Button (C)
1 x Light Mode Button (M)
2 x USB 3.0
1 x USB Type C
1 x Audio


System 2

1 x Power Button
1 x Reset Button
2 x USB 3.0
1 x USB Type C
1 x Audio




DUST FILTER: 1 x Bottom
