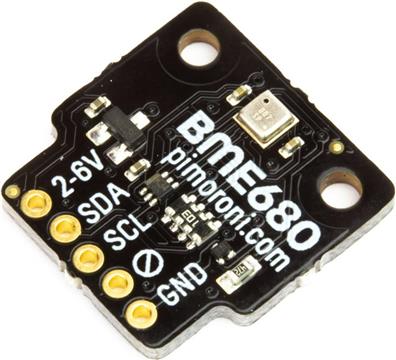

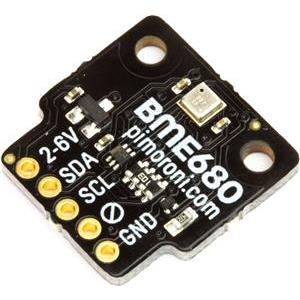

BME680 Breakout - Air Quality, Temperature, Pressure, Humidity Sensor

Proizvod nije dobavljiv. Potražite neke druge modele koji su zamijenili BME680 Breakout - Air Quality, Temperature, Pressure, Humidity Sensor

  large-image
BME680 Breakout - Air Quality, Temperature, Pressure, Humidity Sensor
Kliknite na sliku za povećanje
thumb thumb thumb
Proizvođač: Ostali
Šifra: 1317522
Kataloški broj: PIM357
Jamstvo: 12
Prosječna ocjena: Ocjena 0 0,00 | Glasova: 0
  Ocijeni ovaj proizvod


The state-of-the-art BME680 breakout lets you measure temperature, pressure, humidity,
and indoor air quality, and is Raspberry Pi and Arduino-compatible!

Use this breakout to monitor every aspect of your indoor environment.
Its gas resistance readings will react to changes in volatile organic compounds and can be
combined with humidity readings to give a measure of indoor air quality.

Want to get an idea of whether there's adequate ventilation in your bedroom, your workshop, or workplace?
Set up a BME680 on a Pi Zero W and have it log sensor readings to a file, or stream live data to a web service like adafruit.io or freeboard.io.

Features

Bosch BME680 temperature, pressure, humidity, air quality sensor
I2C interface, with address select via ADDR solder bridge (0x76 or 0x77)
3.3V or 5V compatible
Raspberry Pi-compatible pinout (pins 1, 3, 5, 7, 9)
Compatible with Raspberry Pi 3B+, 3, 2, B+, A+, Zero, and Zero W
Python library
Datasheet

Kit includes

BME680 breakout
1x5 male header
1x5 female right angle header

We've designed this breakout board so that you can solder on the piece of right angle female header and pop it straight onto the bottom left 5 pins on your Raspberry Pi's GPIO header (pins 1, 3, 5, 6, 9).
The right angle header also has the advantage of positioning the breakout away from the Pi's CPU so as to minimise radiated heat.

Software

As well as the C library provided by Bosch, we've put together a Python library (with a quick and painless one-line-installer) to use
with your BME680, making it straightforward to combine it with our other boards (why not use a Blinkt! or Unicorn pHAT to visualise air quality in real time?)

Our software does not support Raspbian Wheezy.

Notes

In our testing, we've found that the sensor requires some burn-in time (at least 20 minutes) and that readings may
take a couple of minutes to stabilise after beginning measurements
The solder pads (marked ADDR) can be bridged to change the I2C address from the default of 0x76 to 0x77,
meaning that you can use up to two sensors on the same Raspberry Pi or Arduino

Dimensions: 19x19x2.75mm (LxWxH)
