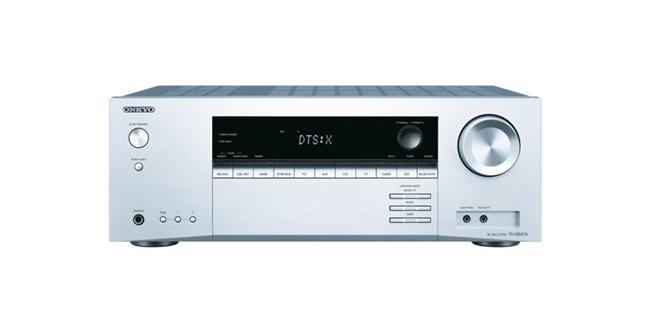

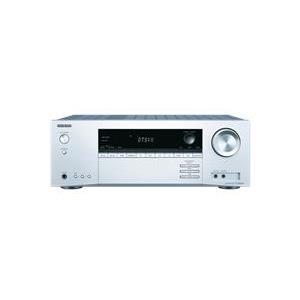

ONKYO TX-NR474
5.1-Channel Network A/V Receiver

Amplify Happiness with Tomorrow’s Entertainment Today

Built on a high-current amp system that effortlessly drives four-ohm speakers, the TX-NR474 has muscle to boost enjoyment of sound, whether it’s music, a movie soundtrack, or the Sunday football. Experience the magic of Dolby Atmos®* and DTS:X™ enhancing 4K movies encoded with HDR10 or Dolby Vision™ via compatible Ultra HD Blu-ray Disc™ players thanks to the receiver’s 4K HDR pass-through function. You can share any A/V receiver source to optional wireless speakers over FireConnect™* powered by Blackfire, while dual-band Wi-Fi® provides stability for Chromecast built-in*, DTS Play-Fi™*, AirPlay, and streaming services such as Spotify®. With a slick GUI and Onkyo Controller app, operation is simple. So sit back, relax, and let the sound of happiness wash over you. * Firmware update required.

Key Features

Unlock Dolby Atmos® and DTS:X™ Playback
Music Made Easy with Chromecast built-in*
Surround Enhancer* Mode
Stream Anything with DTS Play-Fi®
Dual-band Wi-Fi®, AirPlay, and Spotify® Connect


--------------------------------------------



HIGHLIGHTS

Supports 3.1.2-Channel Dolby Atmos®*1 and DTS:X™
135 W per Channel
HDMI® 4 In / 1 Out (4K/60 Hz / HDR10 / Dolby Vision™ / HDCP 2.2)
4 ? Speaker Driving Capability
5 GHz/2.4 GHz Wi-Fi®, Chromecast built-in*1, DTS Play-Fi®*1, and AirPlay
FireConnect™*1 Wireless Multi-room Distribution

ADVANCED FEATURES

HDMI® Terminals Supporting HDR10, Dolby Vision, BT.2020, 4K/60 Hz, and HDCP 2.2
Supports 3.1.2-Channel Dolby Atmos*1 Playback and Dolby Surround Upmixing
Surround Enhancer*1 Mode Replicates 5.1.2-Channel Dolby Atmos Playback with Virtual Surround-field Creation
DTS:X Object-based Audio Reproduction and DTS Neural:X™ 3D Upmixinga
Stable Dual-band 5 GHz/2.4 GHz Wi-Fi® Connectivity
Features Chromecast built-in*1 Wireless Audio Casting Technology
FireConnect™*1 Multi-room Distribution of Network Audio to Wireless Speakers
Ready for Onkyo Controller*2 App Integrated Multi-room Intuitive Operation
DTS Play-Fi*1 Shares Music from Apps to Receiver and Wireless Speakers
AirPlay Audio Streaming from iTunes and iPad, iPhone, iPod touch
Bluetooth® Wireless Technology for Mobiles, Laptops, and PCs (Version 4.1 + LE, Profile: A2DP AVRCP)
Pandora*3, Spotify®, TIDAL*4, TuneIn*4, and Deezer*4
AccuEQ Room Acoustic Calibration with AccuReflex Phase Alignment Technology for Dolby-enabled Speakers
Advanced Music Optimizer to Improve Compressed Digital Audio Quality, Including Bluetooth Audio
480i De-interlacing (480i to 480p) via HDMI

*1 Requires future firmware update. *2 For iOS and Android™ devices. Check App Store or Google Play™ for OS and device requirements. *3 Available in Australia and New Zealand. *4 Availability of services may vary with region. Please confirm before purchase. Subscription may also be required.


AMPLIFIER FEATURES

135 W/Ch (6 ?, 1 kHz, 1% THD, 1 Channel Driven, IEC)
High Current Amplification System for Thrilling Stereo and Multichannel Performance
H.C.P.S. (High Current Power Supply) Transformer
Discrete Output Stage Circuitry for Low Distortion
Non-Phase-Shift Amplification Circuitry for Clarity and Detail
High Current Power to Drive Larger Speakers with 4 ? Resistance
PLL (Phase Locked Loop) Jitter-Cleaning Circuit Technology for S/PDIF Audio

PROCESSING FEATURES

Decodes Dolby Atmos* (3.1.2 Channels) and DTS:X Formats
HDMI Support for 4K/60 Hz, HDR10, Dolby Vision, 3D, Audio Return Channel, DeepColor™, x.v.Color™, LipSync, Dolby Atmos®*, Dolby® TrueHD, DTS-HD Master Audio™, DSD, DVD-Audio, Super Audio CD (SACD), Multichannel PCM, and CEC
Dolby® TrueHD and DTS-HD Master Audio™ Decoding
AKM (AK4438) 384 kHz/32-bit Multichannel DAC
32-bit Digital Signal Processing
DSP Modes for Gaming: Rock, Sports, Action, and RPG
Theater-Dimensional Virtual Surround Function
Pure Audio Mode with Easy Front Panel Button
Front Panel Tone Controls (Bass/Treble) for Front L/R Channels

* Requires firmware update.


CONNECTION FEATURES

4 HDMI Inputs and 1 Output
Powered Rear USB Port (5 V, 1 A)
2 Composite Video Inputs
3 Digital Audio Inputs (2 Optical and 1 Coaxial)
3 Analog Audio Inputs, 1 Stereo Analog Input (3.5 mm, Front)
Subwoofer Pre-Out
Headphone Jack (6.35 mm, Front)
Speaker Posts with Screw Knobs
Speaker Setup Mic Input (Front)

OTHER FEATURES

Playback of USB Audio
Crossover Adjustment for Each Channel (40/50/60/70/80/90/100/120/150/180/200 Hz)
A/V Sync Control (Up to 500 ms in 5 ms Steps at 48 kHz)
Graphical User Interface with Overlaid On-Screen Display (OSD) via HDMI
Quick Setup Guide via GUI and Easy Connection Diagram on Rear Panel
Large Input Buttons and Easy Sound Program Selection via Front Panel
HDMI Pass-through and Network Standby Functions
IP Control via LAN for Home Automation Systems
3-Mode Display Dimmer (Normal/Dim/Dimmer)
40 FM/AM Random Presets
Full-sized Simple Remote Control
