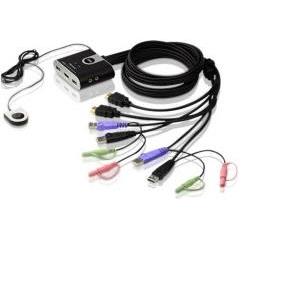

- The CS692 2-Port USB HDMI/Audio Cable KVM Switch links two HDMI-enabled PCs or devices to a single USB keyboard, USB mouse, and HD display console
- The CS692 Switch takes a giant step forward from prior cable KVM models in the Petite series, by offering full HDMI functionality, USB 2.0 peripheral sharing (via a USB hub attached to the USB mouse port), and a firmware upgrade function that allows you to keep up with latest available versions
- Featuring an unbeatable combination of HDMI functionality, USB 2.0 peripheral sharing convenience, gaming keyboard support, and enhanced user-friendly operations, the CS692 allows users to keep up with the latest innovations in desktop multimedia applications

Features
- One KVM console controls two USB HDMI computers
- HDMI compatible; HDCP compatible
- Computer selection via remote port selector, hotkeys, and USB mouse
- Audio-enabled - full bass response provides a rich experience for 2.1 channel surround sound systems
- Independent switching of the KVM and Audio focus - one computer has the KVM focus and the other the Audio focus
- Multiplatform support - Windows, Mac, Linux
- Compact design, built-in all-in-one cables (2× 1.2 m)
- Superior video quality - up to 1920×1200; 1080p
- Compatible with widescreen LCD monitors
- Video DynaSync - exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
- Power on detection - if one computers is powered off, the CS692 will automatically switch to the other computer
- Supports gaming and multimedia keyboards
- Supports multifunction and wireless keyboards and mice
- Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
- Mac keyboard support and emulation
- USB 2.0 mouse port can be used for USB hub and USB peripheral sharing
- Bus-Powered
- Firmware upgradable

Specifications
- Computer Connections: 2
- Port Selection: Hotkey, Remote Port Selector, Mouse
- Connectors:
* Console Ports:
1× HDMI Female (Black)
2× USB Type A Female
1× 3.5mm Audio Jack Female (Green)
1× 3.5mm Audio Jack Female (Pink)
* KVM Ports:
2× HDMI Male (Black)
2× USB Type A Male (Purple)
2× USB Type A Male (Black)
2 x 3.5mm Audio Jack Male (Green)
2× 3.5mm Audio Jack Male (Pink)

LEDs
- KVM: 2 (Green)

CABLE LENGTH:
- KVM: 2× 1.2 m
- Remote Port Selector: 1.8 m

EMULATION
- Keyboard / Mouse: USB

VIDEO
- 1920×1080 @ 60 Hz
- 1920×1200 @ 60Hz

SCAN INTERVAL
- 3, 5, 10, 20 secs. (default 5 secs.)
- Power Consumption: DC5V:0.72W:8BTUBTU

ENVIRONMENTAL
- Operating Temperature: 0C to 50C
- Storage Temperature: -20C to 60C
- Humidity: 0% - 80% RH, Non-condensing

PHYSICAL PROPERTIES
- Housing: Plastic
- Weight: 0.48 kg
- Dimensions (L×W×H): 8.24×6.65×2.52 cm
* For some of rack mount products, please note that the standard physical dimensions of W×D×H are expressed using a L×W×H format

PACKAGE CONTENTS
1× CS692 2-Port USB HDMI/Audio Cable KVM Switch with Remote Port Selector
1× User Instructions
2× Hotkey Stickers
