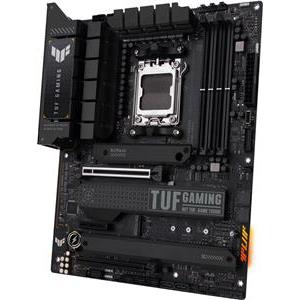

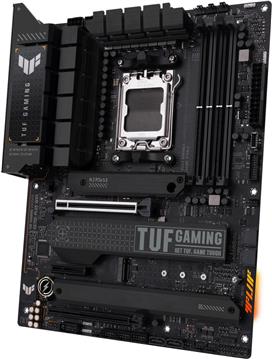

TUF GAMING
X670E-PLUS WIFI

CPU Socket Socket AM5
CPU Brand AMD
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer AMD
Supported Processors AMD Ryzen 7000 Series Desktop Processors
64-bit Support Yes
Socket AM5

Rear Panel I/O Ports
USB Ports 1 x USB-C 3.2
1 x USB-C 3.1
3 x USB 3.1
5 x USB 3.0
DisplayPorts 1 x DisplayPort 1.4
HDMI Port 1 x HDMI 2.1
RJ-45 Ports 1 x RJ-45
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 3 x 3.5mm Jacks
Microphone In Port 1 x 3.5mm Jack
Antenna Connector(s) 2 x SMA Antenna

Internal I/O Connectors
SATA Connectors 4 x SATA III
USB Connectors 1 x USB-C 3.1 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
3 x USB 2.0 headers (supports 6 ports)
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
1 x CPU_OPT fan header
1 x AIO pump header
4 x Chassis fan headers
1 x W_PUMP+ header
Thunderbolt Port(s) 1 x Thunderbolt header
Serial Connectors 1 x COM header
Chassis Intrusion Connector 1 x Chassis Intrusion header
Power Connector Port 1 x 24-pin ATX
2 x 8-pin EPS
Other Connectors 1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen5)
2 x M.2 slots, Key M, Type 2242/2260/2280 (PCIe Gen4)
1 x M.2 slot, Key M, Type 2242/2260/2280/22110 (PCIe Gen3 or SATA)
3 x 3-pin ARGB LED headers
1 x 4-pin RGB LED header
1 x Thermal Sensor header

Memory
Memory Bus Speed Up to 6400 (OC) MHz
Memory Type DDR5
Maximum RAM 128 GB
Memory Slot 4 x DIMM

Motherboard
Northbridge X670E
RAID Supported Yes
RAID Format RAID 0, 1, 10
SATA Supported Yes

Expansion
Number of PCI Express Slots 1 x PCI Express 5.0 x16 slot
1 x PCI Express 4.0 x16 slot (@ x4)
1 x PCI Express 4.0 x1 slot

Graphics Device
Integrated Graphics Supported Yes

Sound
Integrated Sound Realtek S1220A

Warranty
Warranty 3 Years

Network
Integrated Network Realtek
Network Speeds Supported Up to 2.5 Gbps
Wireless LAN Yes (Wi-Fi 6E)
Wireless Network Speed Up to 2.4 Gbps
Bluetooth Yes
Bluetooth Version 5.2

System Requirements
Operating Systems Supported Microsoft Windows 11 64-bit

System
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Jumpers 1 x Clear CMOS
Software Included (may be trial or restricted) Yes
Drivers Yes

Physical
Form Factor ATX Motherboard
In The Box Motherboard
2 x SATA 6Gb/s cables
1 x ASUS Wi-Fi moving antenna
2 x Rubber packages for M.2
2 x Screw packages for M.2 SSD
1 x Support DVD
1 x TUF certification card
1 x User guide
Width 305 mm
Length 244 mm

Key Features
Firewire
IDE/EIDE Supported
SCSI/SAS Supported
Wireless Network Yes
Chipset Manufacturer AMD
Number of PCI Slots slot(s)
Number of PCI-X Slots slot(s)
Main Colour
Socket(s)
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 10 port(s)
SATA III Support Yes
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection No
DVI Connection No
HDMI Connection Yes
DisplayPort Connection Yes
Motherboard Form Factor ATX
Wake on LAN
Motherboard Power Connectors 8 + 8-Pin
Motherboard Chipset AMD X670E
Thunderbolt No
Motherboard Model ASUS TUF Gaming X670E-Plus WiFi
WiFi Speed 2400 Mbps
USB 3.1 Support Yes
Internal USB3.0 Header Yes
Cooler Height mm
M.2 Support Yes
On-board RGB Control ASUS Aura Sync
Memory Speed 6400 MHz
Skip Audio Test
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Internal USB Type-C Header Yes
Radiator Length mm
Microsoft Processor List
Power Requirement (auto) 70 W
Cooler count
Max Memory Speed Supported (Non-overclocked) 5600 MHz
Max Memory Speed Supported (overclocked) 6400 MHz
CPU Power Pins (female) 16
PCI Express Power Pins (female)
Total M.2 Slots 4
Maximum NVMe M.2 ports 4
Maximum SATA M.2 ports 1
PCI-e slots
SATA ports 4
No. of front USB2.0 ports supported 6
No. of front USB3.0 ports supported 2
No. of front USB-C ports supported 1

ASUS TUF GAMING X670E-PLUS WIFI takes all the essential elements of the latest AMD Ryzen 7000-series processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.

Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.
INTELLIGENT CONTROL

Comprehensive controls form the foundation of the ASUS TUF GAMING series. The TUF GAMING X670E motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
Overclocking Technologies

Whether you’re looking to crush benchmarks or fine-tune your system for daily driving, TUF GAMING offers unique tools that let you exploit the intricacies of the latest Ryzen architecture.
AI Cooling II

Balance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then it monitors CPU temperatures to dynamically adjust fans to optimal speeds.
UEFI BIOS

The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners and comprehensive features for seasoned veterans.
Armoury Crate

The ASUS-exclusive Armoury Crate centralizes easy control of supported gaming products. A single intuitive interface lets you customize RGB lighting for all compatible devices and link them to Aura Sync for uni?ed illumination. It also offers information and control for a select and growing hardware ecosystem, with input device settings, Fan Xpert 4 and Two-Way AI Noise Cancelation. Armoury Crate even features product registration, and a news section to stay in touch with the gaming community.
ROCK-SOLID PERFORMANCE

With upgraded power delivery and comprehensive cooling options to fuel AMD's latest CPUs, plus support for faster memory and storage, TUF GAMING X670E-PLUS WIFI is the perfect foundation for your next high-core-count AMD battle rig.
DRAM Overclocking Performance
DDR5 OC 6400

Comprehensive memory tuning options are the cornerstone of TUF GAMING motherboards. With the TUF GAMING X670E-PLUS WIFI, you can extract all of the potential out of your DDR5 modules, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked.
PCIe 5.0 Support

The TUF GAMING X670E-PLUS WIFI also features one PCIe 5.0 M.2 slot to enjoy the fastest data transfers of up to 128 Gbps*, and all M.2 slots support for NVMe and SATA RAID configurations to take advantage of the latest available speeds.
Cooler By Design

The TUF GAMING X670E-PLUS WIFI is armed with a 3X enlarged VRM, PCH and three M.2 slots with heatsinks that provide the perfect balance of mass and surface area for heat dissipation.
Comprehensive Fan Controls

TUF GAMING X670E motherboards feature comprehensive fan controls that can be configured via Fan Xpert 4 utility in Armoury Crate or the award-winning ASUS UEFI BIOS.
Connectivity

The TUF-GAMING X670E-PLUS WIFI reaches new heights of performance potential with the latest version of PCI Express, while an arsenal of USB ports includes three Type-C® connections, and Thunderbolt™ (USB4®) expands compatibility and bandwidth even further.
EASY PC DIY

The TUF GAMING line offers easy setup for all builders. The TUF GAMING Alliance ecosystem grants compatibility, while Armoury Crate has Fan Xpert 4, hardware info, Two-Way AI Noise Cancelation, RGB options and peripheral settings. This platform has intuitive tools to build and optimize dream rigs.
Build With Confidence

TUF GAMING Alliance is a collaboration between ASUS and trusted PC component brands to ensure compatibility across a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With new partnerships and components being added regularly, the TUF GAMING Alliance will continue to grow even stronger.
IMMERSIVE GAMING

TUF GAMING X670E motherboards provide a feature-packed high-performance gaming package, with ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS Gaming, and onboard RGB lighting that syncs with attached gear to personalize your gaming atmosphere.
Two-Way AI Noise Cancelation

This powerful ASUS-exclusive utility leverages a massive deep-learning database to reduce background noise from the microphone* and incoming audio while preserving voices. Distracting keyboard clatter, mouse clicks and other ambient noises are removed so you can hear and be heard with perfect clarity while gaming or during calls.
