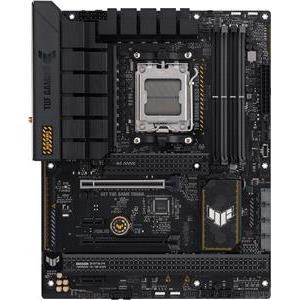

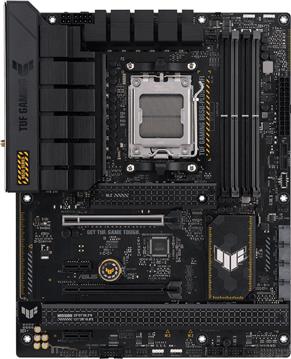

ASUS TUF GAMING B650-PLUS WIFI
| Proizvođač: | Asus |
| Šifra: | 1385064 |
| Kataloški broj: | 90MB1BZ0-M0EAY0 |
| Jamstvo: | 24 |
| Raspoloživost: |
(Dobavljivo)
|
Prosječna ocjena:
0,00
| Glasova:
0
|
| Ocijeni
ovaj proizvod
|
187,10 €
**kod nonSEPA transakcija naplaćujemo naknadu banke
već od 5,77 €/mjesečno
Odabrali ste prikaz cijena za gotovinsko plaćanje - prikaži MPC
shape factor
ATX
Socket
AMD AM5
chipset
AMD B650
CPU-Compatibility
Ryzen 7000
RAM
4x DDR5 DIMM, dual PC5-51200U/?DDR5-6400 (OC), max. 128GB (UDIMM)
Extension slots
2x PCIe 4.0 x16 (1x x16, 1x x4), 2x PCIe 4.0 x1, 1x M.2/?M-Key (PCIe 5.0 x4, 2280/?2260/?2242), 1x M.2/?M-Key (PCIe 4.0 x4, 22110/?2280/?2260/?2242), 1x M.2/?M-Key (PCIe 4.0 x4, 2280/?2260/?2242)
external connectors
1x HDMI 2.1 (iGPU), 1x DisplayPort 1.4 (iGPU), 1x USB-C 3.2 (20Gb/?s), 1x USB-C 3.1 (10Gb/?s), 2x USB-A 3.1 (10Gb/?s), 4x USB-A 2.0 (480Mb/?s), 1x 2.5GBase-T (Realtek), 5x jack, 2x antenna connector (RP-SMA)
Internal connectors
1x USB-C 3.0 Key-A Header (5Gb/?s), 1x USB 3.0 Header (5Gb/?s, 2x USB 3.0), 2x USB 2.0 header (480Mb/?s, 4x USB 2.0), 4x SATA 6Gb/s (B650), 1x serial, 1x Chassis Intrusion-Header, 1x Thunderbolt-Header 13-Pin (14-1), 1x COM Debug-Header
Header Cooling
2x CPU fan 4-Pin, 4x fan 4-Pin, 1x AIO-pump 4-Pin
Header Lighting
1x 4-Pin RGB (+12V/?G/?R/?B, max. 3A), 3x 3-Pin ARGB (+5V/?DATA/?GND, max. 3A, ASUS Gen2)
buttons/Switches
USB BIOS Flashback (external)
Audio
7.1 (Realtek ALC1200), DTS audio processing
Graphics
iGPU
Wireless
Wi-Fi 6 (WLAN 802.11a/?b/?g/?n/?ac/?ax, 2x2), Bluetooth 5.2
RAID level
0/?1/?10 (B650)
Power connections
1x 24-Pin ATX, 1x 8-Pin EPS12V, 1x 4-Pin ATX12V
VRM
14 virtual phases (12+2), 8 real phases (6+2), PWM-Controller: ASP2208 (max. 8 phases)
MOSFETs CPU
12x 60A AOZ5317
MOSFETs SoC
2x 60A AOZ5317
Lighting
not available
BIOS
1x 32MB (256Mb)
Special features
audio+solid capacitors, Diagnostic LED (LED indicators), 3x M.2-passive cooler, I/?O-shield integrated, onboard TPM 2.0 support (AMD fTPM), ECC-support
Warranty
three years (handling by merchant)
| Osnovne karakteristike | |
|---|---|
| Socket: | AM5 |
| Format ploče: | ATX |
| CPU podrška: | AMD Ryzen |
| Memorija: | DDR5 |
| Broj utora: | 4 |
| Chipset: | AMD B650 |
| Ostale karakteristike | |
| Boja: | Crna |
