CPU Socket Socket AM5
CPU Brand AMD
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer AMD
Supported Processors AMD Ryzen 7000 Series Desktop Processors
64-bit Support Yes
Socket AM5
Rear Panel I/O Ports

USB Ports 1 x USB-C 3.2
1 x USB-C 3.1
7 x USB 3.1
1 x USB 3.0
2 x USB 2.0
DisplayPorts 1 x DisplayPort 1.4
HDMI Port 1 x HDMI 2.1
RJ-45 Ports 1 x RJ-45
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 3 x 3.5mm Jacks
Microphone In Port 1 x 3.5mm Jack
S/PDIF Port 1 x S/PDIF Optical Out
Antenna Connector(s) 2 x SMA Antenna
Internal I/O Connectors

SATA Connectors 4 x SATA III
USB Connectors 1 x USB-C 3.2 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
1 x CPU_OPT fan header
1 x AIO Pump header
4 x Chassis fan headers
Thunderbolt Port(s) 1 x Thunderbolt header
Chassis Intrusion Connector 1 x Chassis Intrusion header
Power Connector Port 1 x 24-pin ATX
2 x 8-pin EPS
Other Connectors 2 x M.2 slots, Key M, Type 2242/2260/2280 (PCIe Gen5)
1 x M.2 slot, Key M, Type 2242/2260/2280/22110 (PCIe Gen4)
1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen4)
3 x 3-pin ARGB LED headers
1 x 4-pin RGB LED header
1 x Thermal Sensor header
Memory

Memory Bus Speed Up to 6400+ (OC) MHz
Memory Type DDR5
Maximum RAM 128 GB
Memory Slot 4 x DIMM
Motherboard

Northbridge X670
RAID Supported Yes
RAID Format RAID 0, 1, 10
SATA Supported Yes
Expansion

Number of PCI Express Slots 1 x PCI Express 5.0 x16 slot
1 x PCI Express 4.0 x16 slot (@ x4)
1 x PCI Express 3.0 x1 slot
Graphics Device

Integrated Graphics Supported Yes
Sound

Integrated Sound ROG SupremeFX ALC4080
Warranty

Warranty 3 Years
Network

Integrated Network Intel
Network Speeds Supported Up to 2.5 Gbps
Wireless LAN Yes (Wi-Fi 6E)
Wireless Network Speed Up to 2.4 Gbps
Bluetooth Yes
Bluetooth Version 5.2
System Requirements

Operating Systems Supported Microsoft Windows 11 64-bit
System

BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Jumpers 1 x CPU Over Voltage
Software Included (may be trial or restricted) Yes
Drivers Yes
Physical

Form Factor ATX Motherboard
In The Box Motherboard
2 x SATA 6Gb/s cables
1 x Thermal pad for M.2
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x M.2 Q-Latch packages for M.2 backplate
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix sticker
1 x ROG Strix thank you card
2 x Rubber Packages for M.2
1 x Rubber Package for M.2 backplate
1 x User guide
Width 305 mm
Length 244 mm
Key Features

Firewire
IDE/EIDE Supported
SCSI/SAS Supported
Wireless Network Yes
Chipset Manufacturer AMD
Number of PCI Slots slot(s)
Number of PCI-X Slots slot(s)
Main Colour
Socket(s)
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 12 port(s)
SATA III Support Yes
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection No
DVI Connection No
HDMI Connection Yes
DisplayPort Connection Yes
Motherboard Form Factor ATX
Wake on LAN
Motherboard Power Connectors 8 + 8-Pin
Motherboard Chipset AMD X670E
Thunderbolt No

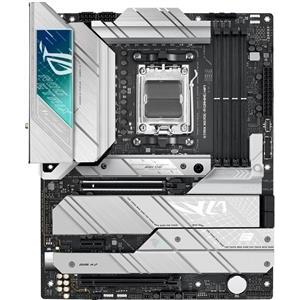

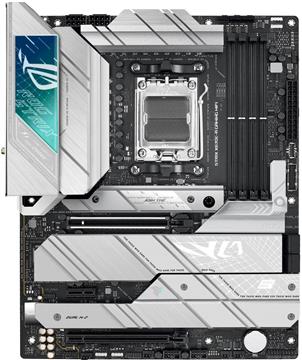

Motherboard Model ASUS ROG Strix X670E-A Gaming WiFi
WiFi Speed 2400 Mbps
USB 3.1 Support Yes
Internal USB3.0 Header Yes
Cooler Height mm
M.2 Support Yes
On-board RGB Control ASUS Aura Sync
Memory Speed 6400 MHz
Skip Audio Test
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Internal USB Type-C Header Yes
Radiator Length mm
Microsoft Processor List
Power Requirement (auto) 70 W
Cooler count
Max Memory Speed Supported (Non-overclocked) 5200 MHz
Max Memory Speed Supported (overclocked) 6400 MHz
CPU Power Pins (female) 16
PCI Express Power Pins (female)
Total M.2 Slots 4
Maximum NVMe M.2 ports 4
PCI-e slots
SATA ports 4
No. of front USB2.0 ports supported 4
No. of front USB3.0 ports supported 2
No. of front USB-C ports supported 1
