CPU Socket Socket 1700
CPU Brand Intel
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer Intel
Supported Processors 13th & 12th Gen Intel Core, Pentium Gold and Celeron Processor
64-bit Support Yes
Socket LGA1700
Rear Panel I/O Ports

USB Ports 1 x USB-C 3.2
1 x USB-C 3.1
2 x USB 3.1
4 x USB 3.0
DisplayPorts 1 x DisplayPort 1.4
HDMI Port 1 x HDMI 2.1
RJ-45 Ports 1 x RJ-45
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 1 x 3.5mm Jack
Microphone In Port 1 x 3.5mm Jack
Antenna Connector(s) 2 x SMA Antenna
Internal I/O Connectors

SATA Connectors 4 x SATA III
USB Connectors 1 x USB-C 3.1 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
1 x CPU_OPT fan header
1 x AIO pump header
4 x Chassis fan headers
Thunderbolt Port(s) 1 x Thunderbolt header
Serial Connectors 1 x COM header
Chassis Intrusion Connector 1 x Chassis Intrusion header
TPM Header 1 x SPI TPM header
Power Connector Port 1 x 24-pin ATX
2 x 8-pin EPS
Other Connectors 2 x M.2 slots, Key M, Type 2242/2260/2280/22110 (PCIe Gen4)
1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen4)
1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen4 or SATA)
3 x 3-pin ARGB LED header
1 x 4-pin RGB LED header
Memory

Memory Bus Speed Up to 7000 (OC) MHz
Memory Type DDR5
Maximum RAM 128 GB
Memory Slot 4 x DIMM
Motherboard

Northbridge Z790
RAID Supported Yes
RAID Format RAID 0, 1, 5, 10
SATA Supported Yes
Expansion

Number of PCI Express Slots 1 x PCI Express 5.0 x16 slot
1 x PCI Express 4.0 x16 slot (@ x4)
1 x PCI Express 4.0 x4 slot
2 x PCI Express 3.0 x1 slots
Graphics Device

Integrated Graphics Supported Yes
Sound

Integrated Sound Realtek S1220A
Warranty

Warranty 3 Years
Network

Integrated Network Intel
Network Speeds Supported Up to 2.5 Gbps
Wireless LAN Yes (Wi-Fi 6E)
Wireless Network Speed Up to 2.4 Gbps
Bluetooth Yes
Bluetooth Version 5.2
System Requirements

Operating Systems Supported Microsoft Windows 11 64-bit
System

BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Jumpers 1 x Clear CMOS
Software Included (may be trial or restricted) Yes
Drivers Yes
Physical

Form Factor ATX Motherboard
In The Box Motherboard
2 x SATA 6Gb/s cables
1 x ASUS Wi-Fi moving antenna
1 x Q-connector
2 x M.2 Rubber Packages
1 x Screw package for M.2 SSD
1 x User guide
Width 305 mm
Length 244 mm
Key Features

Firewire
IDE/EIDE Supported
SCSI/SAS Supported
Wireless Network Yes
Chipset Manufacturer Intel
Number of PCI Slots slot(s)
Number of PCI-X Slots slot(s)
Main Colour
Socket(s)
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 8 port(s)
SATA III Support Yes
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection No
DVI Connection No
HDMI Connection Yes
DisplayPort Connection Yes
Motherboard Form Factor ATX
Wake on LAN
Motherboard Power Connectors 8 + 8-Pin
Motherboard Chipset Intel Z790
Thunderbolt No

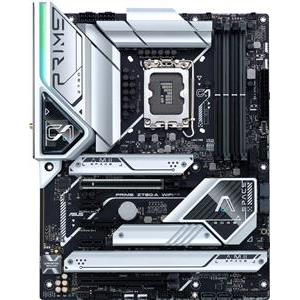

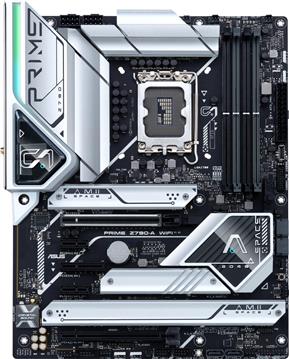

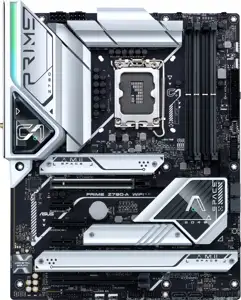

Motherboard Model ASUS Prime Z790-A WiFi
WiFi Speed 2400 Mbps
USB 3.1 Support Yes
Internal USB3.0 Header Yes
Cooler Height mm
M.2 Support Yes
On-board RGB Control ASUS Aura Sync
Memory Speed 7000 MHz
Skip Audio Test
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Internal USB Type-C Header Yes
Radiator Length mm
Microsoft Processor List
Power Requirement (auto) 70 W
Cooler count
Max Memory Speed Supported (Non-overclocked) 5600 MHz
Max Memory Speed Supported (overclocked) 7000 MHz
CPU Power Pins (female) 16
PCI Express Power Pins (female)
Total M.2 Slots 4
Maximum NVMe M.2 ports 4
Maximum SATA M.2 ports 1
PCI-e slots
SATA ports 4
No. of front USB2.0 ports supported 4
No. of front USB3.0 ports supported 2
No. of front USB-C ports supported 1
Graphics

Graphics Chipset
Item Details

Manufacturer ASUS
Manufacturer Code 90MB1CS0-M0EAY0
Alternative Part Number PRIME Z790-A WIFI
EAN 4711081939320
UPC 195553939324
Condition New
