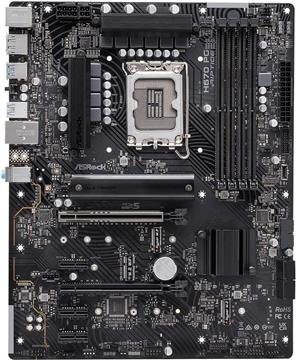

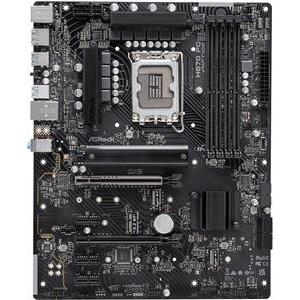

ASRock H670 PG Riptide - motherboard - ATX - LGA1700 Socket - H670
Proizvod nije dobavljiv. Potražite neke druge modele koji su zamijenili ASRock H670 PG Riptide - motherboard - ATX - LGA1700 Socket - H670
| Proizvođač: | Asrock |
| Šifra: | 1367487 |
| Kataloški broj: | 90-MXBHC0-A0UAYZ |
| Jamstvo: | 24 |
Prosječna ocjena:
0,00
| Glasova:
0
|
| Ocijeni
ovaj proizvod
|
Core Specifications
Edition H670 PG Riptide
Form Factor ATX
CPU Socket 1700
Chipset Intel H670
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
DDR4 - 3200
DDR4 - 5000+(OC)
Max. Memory Capacity 128GB
Audio
Audio Realtek ALC897 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
DisplayPort 1.4
HDMI 2.1
Internal Connectivity
Expansion Slots
1 x M.2, 22-42/60/80, PCIe Gen4x4
1 x M.2, 22-60/80, PCIe Gen4x4
1 x M.2, 22-60/80/110 PCIe Gen 4x4
3 x PCIe 3.0 x1
1 x PCIe 4.0 x16
1 x PCIe 5.0 x16
4 x SATA 6GB/s
SATA Support N/A
RAID Support via
Storage Mode Support
Internal I/O
1 x 24-pin (Power)
1 x 4-pin (Power)
1 x 4-pin CPU Fan Connector
1 x 4-pin Water Pump Connector
1 x 8-pin (Power)
3 x Addressable Digital RGB Header
4 x Chassis Water Pump/Fan Connector
1 x Front Panel Audio Header
1 x Power LED / Speaker Header
1 x RGB LED connector
1 x Thunderbolt AIC Connector
1 x TPM (SPI_TPM) header
1 x USB 2.0 Header
2 x USB 3.2 Gen1 Header
1 x USB 3.2 Gen2 Type-C Front Panel Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel® I219V (Gigabit LAN)
Rear I/O Connectors
1 x BIOS Flashback Button
1 x DisplayPort 1.4
1 x Front Speaker Out
1 x HDMI 2.1
1 x Line In
1 x Mic-In
1 x PS/2 Keyboard/Mouse Combo
1 x RJ-45 with LED
2 x USB 2.0
4 x USB 3.2 Gen1 Type-A
1 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen2 Type-C
| Osnovne karakteristike | |
|---|---|
| Socket: | 1700 |
| Format ploče: | ATX |
| CPU podrška: |
Intel 14. gen Intel 13. gen Intel 12. gen |
| Memorija: | DDR4 |
| Broj utora: | 4 |
| Max. memorije [GB]: | |
| Chipset: | Intel H670 |
| Ostale karakteristike | |
| Boja: | Crna |
