PLANET WNRT-625 Wireless Broadband Router 300Mbps, 802.11n Draft 2.0 (2T/2R) - Ralink

Proizvod nije dobavljiv. Potražite neke druge modele koji su zamijenili PLANET WNRT-625 Wireless Broadband Router 300Mbps, 802.11n Draft 2.0 (2T/2R) - Ralink

  large-image

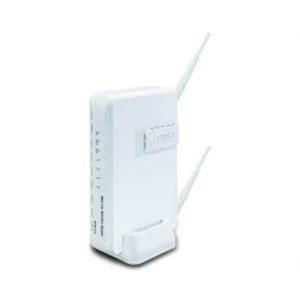

PLANET WNRT-625 Wireless Broadband Router 300Mbps, 802.11n Draft 2.0 (2T/2R) - Ralink
Kliknite na sliku za povećanje
thumb
Proizvođač: Planet
Šifra: 0180166
Kataloški broj: WNRT-625
Jamstvo: 12
Prosječna ocjena: Ocjena 0 0,00 | Glasova: 0
  Ocijeni ovaj proizvod


Key Features
- IEEE 802.11n (Draft 2.0) wireless technology compliant with 802.11b/g standard
- Supports Wi-Fi Protected Setup (WPS)
- Supports 64/128-bit WEP, WPA-TKIP(PSK), WPA2-AES(PSK), 802.1x
- Access Private LAN Servers from the Public Network
- Supports AP / Station-Infrastructure / Bridge / Repeater modes
- Equipped with four LAN ports (10/100M) and one WAN port (10/100M), Auto-MDI / MDI-X supported
- Supports DHCP Server
- System status monitoring includes Active DHCP Client, Security Log and Device/Connection Status
- Easy configuration by Web-Based GUI and setup Wizard
- Remote Management allows configuration and upgrades from a remote site
- Supported Internet types: Dynamic / Static IP / PPPoE / PPTP / L2TP
- MAC / IP filter access control, URL blocking, SPI firewall + DoS prevention protection
- Supports UPnP function
- Supports WISP
- Capable of up to 300Mbps data rate

Specifications
- Standard: IEEE 802.11b/g, 802.11n Draft 2.0, IEEE802.3u
- Radio Technology:
* IEEE 802.11b: DQPSK, DBPSK, DSSS, and CCK
* IEEE 802.11g: BPSK, QPSK, 16QAM, 64QAM
* IEEE 802.11n: MCS0-MCS15
- WAN Port: 1× 100Base-TX, Auto-MDI/MDI-X
- LAN Port: 4× 100Base-TX, Auto-MDI/MDI-X
- Antenna connector: 2× Fixed 2dBi Dipole Antenna (2T2R)
- Data Encryption: 64-bit / 128-bit WEP, WPA-PSK, WPA, WPA2, 802.1x encryption
- Frequency: 2.4-2.4835GHz
- Output Power:
* 802.11b: Typ. 18dBm@Normal Temp Range
* 802.11g: Typ. 15dBm@Normal Temp Range
* 802.11n: Typ. 15dBm@Normal Temp Range
- Data Rate:
* 11Mbps Max @802.11b
* 54Mbps Max @802.11g
* 300Mbps Max @802.11n
- Receiver Sensitivity:
* 11b CCK 1.0Mbps -78dbm 11b CCK 11.0Mbps -91dbm
* 11g OFDM 6Mbps -78dbm 11g OFDM 54Mbps -78dbm
* 11n 20MHz MCS7 : -73dbm 11n 40MH MCS7: -68dbm
- LED Indicators: PWR, WLAN, WPS, WAN 1, LAN 4
- Temperature:
* Operating :0 - 40 Degree C
* Storage: -20 - 60 Degree C
- Humidity:
* Operating: 10 - 85% Non-Condensing
* Storage: 5 - 90% Non-Condensing
- Dimension (W×D×H): 176×124×35 mm
- Weight: 295g
- Power Requirement: 12VDC, 0.5A
