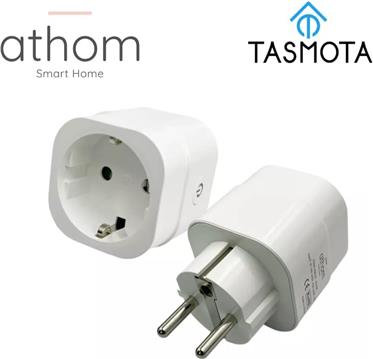

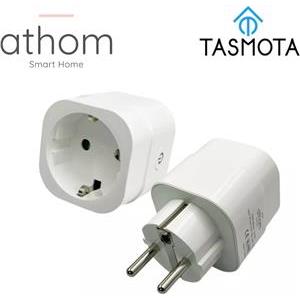

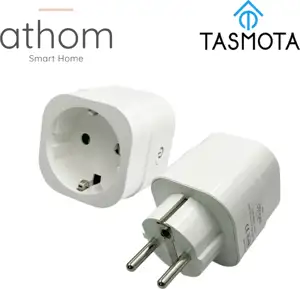

Pametna utičnica Athom, mjeri potrošnju, 16A, preflashed TASMOTA Smart Plug
| Proizvođač: | Athom |
| Šifra: | 1389413 |
| Kataloški broj: | PG01V2-EU16A-TAS-2-FK |
| Jamstvo: | 12 |
| Raspoloživost: |
(Na upit)
|
Prosječna ocjena:
0,00
| Glasova:
0
|
| Ocijeni
ovaj proizvod
|
22,56 €
**kod nonSEPA transakcija naplaćujemo naknadu banke
-10% za gotovinu
već od 0,63 €/mjesečno
*Za prikaz cijena sa popustom (-10%) kliknite ovdje
The measurement error of active power about 0.2%
The measurement error of effective current is 0.5%
The measurement error of effective voltage is 0.5%
Total local control with quick setup and updates.
Control using MQTT, Web UI, HTTP or serial.
Automate using timers, rules or scripts.
Integration with home automation solutions.
Incredibly expandable and flexible.
Specification:
*Input voltage:100-240VAC 50/60Hz
*Current:16A(Max)
*Power rating:2200W
*Product Size:L51*W51*H85mm
*Standard:EU
*Wireless standard:IEEE802.11b/g/n,2.4GHz
*Housing Color:Whtie
*Operation Temperature:-20?~+50?
*Plastic material:ABS+PC
*Fire-protection rating:94-V0
*Package Size:62*62*86mm Weight:80g
Tasmota Template
{"NAME":"Athom Plug V2","GPIO":[0,0,0,3104,0,32,0,0,224,576,0,0,0,0],"FLAG":0,"BASE":18}
GPIO:
GPIO# Component
GPIO0 None
GPIO1 None
GPIO2 None
GPIO3 CSE7766 Rx
GPIO4 None
GPIO5 Button1
GPIO9 None
GPIO10 None
GPIO12 Relay1
GPIO13 LedLinki
GPIO14 None
GPIO15 None
GPIO16 None
FLAG None
Notice:
HLW8032 occasionally report invalid power measurements for load values below 5W. During this situation it sometimes reports a valid load. By setting SetOption39 to 128 (default) it must read at least 128 invalid power readings before reporting there is no load.
To discard all loads below 6W simply set SetOption39 1 (0 will reset to default on next restart) so it will report no load below 6W.
