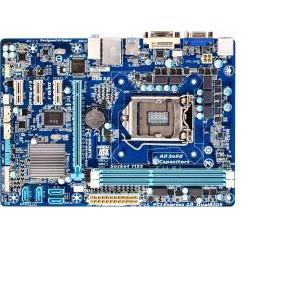

Matična ploča Gigabyte MB H61MA-D3V, S.1155, iH61, DDR3/1333, PCIe, VGA, S-ATAII/S-ATA3, RAID, G-LAN, USB3.0, 8ch., mATX
Proizvod nije dobavljiv. Potražite neke druge modele koji su zamijenili Matična ploča Gigabyte MB H61MA-D3V, S.1155, iH61, DDR3/1333, PCIe, VGA, S-ATAII/S-ATA3, RAID, G-LAN, USB3.0, 8ch., mATX
| Proizvođač: | Gigabyte |
| Šifra: | 0081372 |
| Kataloški broj: | GA-H61MA-D3V |
| Jamstvo: | 36 |
Prosječna ocjena:
0,00
| Glasova:
0
|
| Ocijeni
ovaj proizvod
|
CPU
- Support for Intel Core i7/Intel Core i5/Intel Core i3/Intel Pentium/Intel Celeron processors in the LGA1155 package
- L3 cache varies with CPU
CHIPSET
- Intel H61 Express Chipset
MEMORY
- 2× 1.5V DDR3 DIMM sockets supporting up to 16GB of system memory (due to Windows 32-bit operating system limitation, when more than 4GB of physical memory is installed, the actual memory size displayed will be less than 4GB)
- Dual channel memory architecture
- Support for DDR3 1333/1066/800 MHz memory modules
- Support for non-ECC memory modules
ONBOARD GRAPHICS
- Integrated Graphics Processor:
1× D-Sub port
1× DVI-D port, supporting a maximum resolution of 1920×1200
* The DVI-D port does not support D-Sub connection by adapter
AUDIO
- Realtek ALC887 audio codec
- High Definition Audio
- 2/4/5.1/7.1-channel
* To enable 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver
LAN
- 1× Realtek 8111E/8111F chip (10/100/1000 Mbit)
EXPANSION SLOTS
1× PCI Express x16 slot, running at x16 (the PCI Express x16 slot conforms to PCI Express 3.0 standard)
* To support PCI Express 3.0, you must install an Intel 22nm CPU
3× PCI Express x1 slots (the PCI Express x1 slots conform to PCI Express 2.0 standard)
STORAGE INTERFACE
- Chipset: 4× SATA 3Gb/s connectors (SATA2 0/1/2/3) supporting up to 4 SATA 3Gb/s devices
- Marvell 88SE9172 chip: 2× SATA 6Gb/s connectors (GSATA3 0/1) supporting up to 2 SATA 6Gb/s devices; Support for RAID 0 and RAID 1
USB
- Chipset: Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
- Etron EJ168 chip: Up to 2 USB 3.0/2.0 ports on the back panel
INTERNAL I/O CONNECTORS
1× 24-pin ATX main power connector
1× 4-pin ATX 12V power connector
4× SATA 3Gb/s connectors
2× SATA 6Gb/s connectors
1× CPU fan header
1× system fan header
1× front panel header
1× front panel audio header
2× USB 2.0/1.1 headers
1× Clear CMOS jumper
BACK PANEL CONNECTORS
1× PS/2 keyboard/mouse port
1× D-Sub port
1× DVI-D port
4× USB 2.0/1.1 ports
2× USB 3.0/2.0 ports
1× RJ-45 port
3× audio jacks (Line In/Line Out/Microphone)
I/O CONTROLLER
- iTE IT8728 chip
H/W MONITORING
- System voltage detection
- CPU/System temperature detection
- CPU/System fan speed detection
- CPU overheating warning
- CPU/System fan fail warning
- CPU/System fan speed control
* Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install
BIOS
- 2× 32 Mbit flash
- Use of licensed AMI EFI BIOS
- Support for DualBIOS
- PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a
UNIQUE FEATURES
- Support for @BIOS
- Support for Q-Flash
- Support for Xpress Recovery2
- Support for EasyTune
* Available functions in EasyTune may differ by motherboard model
- Support for ON/OFF Charge
OPERATING SYSTEM
- Support for Microsoft Windows 7/Vista/XP
FORM FACTOR
- Micro ATX Form Factor (24.4×17.4 cm)
| Osnovne karakteristike | |
|---|---|
| Socket: | 1155 |
| Memorija: | DDR3 |
