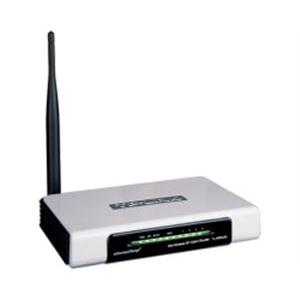

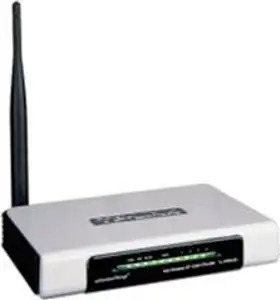

Access Point TP-Link TL-WR543G Wireless with eXtended RangeTM 54Mbps (2.4GHz), 802.11g/b, Built-
Proizvod nije dobavljiv. Potražite neke druge modele koji su zamijenili Access Point TP-Link TL-WR543G Wireless with eXtended RangeTM 54Mbps (2.4GHz), 802.11g/b, Built-
Proizvođač: | TP-Link |
Šifra: | 0020079 |
Kataloški broj: | TL-WR543G |
Jamstvo: | 12 |
Prosječna ocjena: 0,00 | Glasova: 0 |
Ocijeni
ovaj proizvod
|
Features
- Supports AP Client Router and AP Router operation mode.
- Supports WIFI Internet Access (WISP)
- Supports Wireless Distribution System (WDS)
- Adopts 2x to 3x eXtended Range
- Wireless Data transfer rates up to 54Mbps
- Supports 64/128/152-bit WEP, complies with 128 bit WPA standard(TKIP/AES), supports MIC, IV Expansion, Shared Key Authentication, IEEE 802.1X
- Supports PPPoE, Dynamic IP, Static IP, L2TP, PPTP and Big Pond Cable Internet Access. (AP Router mode only)
- Built-in NAT and DHCP server supporting static IP address distributing
- Supports UPnP, Dynamic DNS, Static Routing, VPN Pass-through
- Supports Parental Control, Virtual Server, Special Application and DMZ host
- Built-in firewall supporting IP address filtering, Domain Name filtering, and MAC address filtering
- Provides WLAN ACL (Access Control List) (AP Router mode only)
- Supports configuration backup/restore and firmware upgrade
- Supports Web management
- Detachable Antenna (reverse SMA connector)
Specifications
SOFTWARE SPECIFICATION
- Standards: IEEE 802.11g; IEEE 802.11b
- Wireless Signal Rates With Automatic Fallback:
* 11g: Up to 54Mbps (dynamic)
* 11b: Up to 11Mbps (dynamic)
- Frequency Range: 2.4-2.4835GHz
- Wireless Transmit Power (MAX): 19dBm (MAX EIRP)
- Modulation Technology:
* IEEE 802.11b: DQPSK, DBPSK, DSSS, and CCK
* IEEE 802.11g: BPSK, QPSK, 16QAM, 64QAM, OFDM
- Receiver Sensitivity:
* 54M: -68dBm@10% PER
* 11M: -85dBm@8% PER
* 6M: -88dBm@10% PER
* 1M: -90dBm@8% PER
* 256K: -105dBm@8% PER
- Wireless Mode:
* AP Router Mode
* AP Client Router Mode (WISP Clent)
* Bridge mode (point-to-point / point to Multi-point)
- Wireless Range: Indoors up to 200m, Outdoors up to 830m
- Wireless Security:
* SSID Enable/Disable
* MAC Address Filter
* 64/128/152-bit WEP Encryption
* WPA/WPA2/WPA-PSK/WPA2-PSK (AES/TKIP) Encryption
HARDWARE SPECIFICATION
- Interface: 4× 10/100M LAN Ports(RJ45); 1× 10/100M WAN Port(RJ45)
- Antenna: 3dBi Detachable Omni Directional Antenna (Reverse SMA Connector)
- Power Supply Unit:
* Input: Localized to Country of Sale
* Output: 9VAC / 0.8A Linear PSU
- Operating Temperature: 0C-40C (32F-104F)
- Storage Temperature: -40C-70C (-40F-158F)
- Relative Humidity: 10%-90%, Non Condensation
- Storage Humidity: 5%-95% Non-Condensing
- Dimensions: 174×111×30 mm
