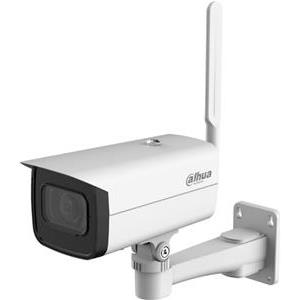

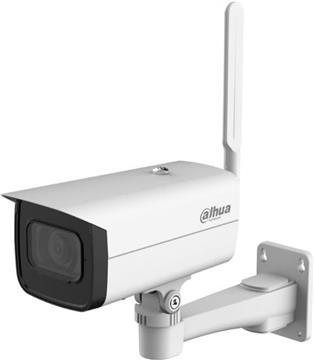

4G Kamera Dahua IPC-HFW3241DF-AS-4G .Rezolucija 1080 P FULL HD. IR noćni rad do 50 metara .SD Card do 256 GB. Audio ulaz.Audio izlaz. Alarmni ulaz.Alarmni izlaz.2G/3G/4G podesivo.RS 485 kontrola solarne stanice.Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) 2MP IR Fixed focal Bullet WizSense 4G Network Camera> 2MP 1/2.8" CMOS image sensor, low luminance, and high definition image.> Outputs max. 2MP (1920 × 1080)@25/30 fps.> H.265 codec, high compression rate, ultra-low bit rate.> Built-in IR LED, and the max. illumination distance is 50 m.> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.> Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).> Abnormality detection: Motion detection, privacy masking, no SD card, SD card full, SD card error, network disconnection, IP conflict, and illegal access> Support low power push alarm function; support the intergration of solar energy.> Support the camera to get the power information through 485 link, and OSD overlay display.> Alarm: 2 in,2 out; audio: 1 in, 1 out; 1 RS-485; supports max. 256 G Micro SD card.> 12 VDC power supply.> IP67 protection.> SMD 3.0.CameraImage Sensor1/2.8” CMOSEffective Pixels1920 (H) × 1080 (V)ROM128 MBRAM512 MBScanning SystemProgressiveElectronic Shutter SpeedAuto/Manual 1/3 s–1/100,000 sMin. Illumination0.002 Lux@F1.6(Color,30IRE)0.0002 Lux@F1.6(B/W,30IRE)0 lux (Illuminator on)S/N Ratio> 56 dBIllumination Distance50 m (273 ft) (IR)Illuminator On/Off ControlAuto; ManualIlluminator Number2 (IR LED)Pan/Tilt/Rotation RangePan: 0°–360°Tilt: –60°–0°Rotation: 0°–360°LensLens TypeFixed-focalMount TypeM12Focal Length2.8mm; 3.6mm; 6mmMax. Aperture2.8mm:F1.63.6mm:F1.66mm:F1.6Field of View2.8 mm: Horizontal 107° × Vertical 56° × Diagonal 127°3.6 mm: Horizontal 88° × Vertical 44° × Diagonal 105°6 mm: Horizontal 54° × Vertical 29° × Diagonal 63°Iris TypeFixedClose Focus Distance2.8 mm: 0.7 m (2.5 ft)3.6 mm: 1.3 m (4.25 ft)6 mm: 2.8 m (9.15 ft)DORI DistanceLensDetectObserveRecognizeIdentify2.8 mm43.9 m(144 ft)17.5 m(57.4 ft)8.8 m(28.8 ft)4.4 m(14.4 ft)3.6 mm58.9 m(193 ft)23.6 m(77.4 ft)11.8 m(38.4 ft)5.9 m(19.4 ft)6 mm88.3 m(289.6 ft)35.3 m(115.8 ft)17.7 m(58 ft)8.8 m(28.8 ft)Professional, IntelligentIntelligent SearchWork together with Smart NVR to perform refine intelligent search, event extraction and merging to event videosSMD 3.0Less false alarm, longer detection distanceIVS (Perimeter Protection)Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)Smart SearchWork together with Smart NVR to perform refine intelligent search, event extraction and merging to event videosVideoVideo CompressionH.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)Smart CodecSmart H.265+; Smart H.264+AI CodingAI Coding AI H.265; AI H.264Video Frame RateMain stream: 1920 × 1080@(1 fps–30 fps)Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps)Third stream:1920 × 1080@(1 fps–30 fps)*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.Stream Capability3 streamsResolution1080p (1920 × 1080); 1.3M (1280 × 960); 720P (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288)Bit Rate ControlCBR; VBRVideo Bit RateH.264:512kbps -8192kbpsH.265:256kbps -7424kbpsDay/NightAuto (ICR)/Color/B/WBLCYesHLCYesWDR120 dBWhite BalanceAuto; natural; street lamp; outdoor; manual; regional customGain ControlAuto; manualNoise Reduction3D NRMotion DetectionOFF/ON (4 areas, rectangular)Region of Interest (RoI)Yes (4 areas)Image Rotation0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution and lower)MirrorYesPrivacy Masking8 areasAudioAudio CompressionPCM; G.711a; G.711Mu; G.726; G.723Built-in MICYesAlarmAlarm EventNo SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exceptionNetworkNetworkRJ-45 (10/100 Base-T)SDK and APIYesCyber SecurityVideo encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgradeNetwork ProtocolIPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMPInteroperabilityONVIF (Profile S/Profile G/Profile T); CGI; P2P; MilestoneUser/Host20 (Total bandwidth: 64 M)StorageFTP;SFTP; Micro SD card (support max. 256 GB); NASBrowserIE: IE8/9/11ChromeFirefoxManagement SoftwareSmart PSS;DSS;DMSSMobile ClientiOS;Android4G4G_LTE: B1/B3/B5/B7/B8/B20/B28/B38/B40/B413G_WCDMA : B1/B5/B82G_GSM :B3/B5/B8CertificationCertificationsCE-LVD: EN62368-1CE-EMC: Electromagnetic Compatibility Directive 2014/30/EUFCC: 47 CFR FCC Part 15, Subpart BPortRS-4851 (baud rate range:1200 bps–115200 bps)Audio Input1 channel (RCA port)Audio Output1 channel (RCA port)Alarm Input2 channels in: 5 mA 3 V–5 VDCAlarm Output2 channels out: 300 mA 12 VDCPowerPower Supply12 VDCPower ConsumptionBasic: 3.3 W (12 VDC);Max. (WDR+H.265+IR+4G): 5.9W (12 VDC)EnvironmentOperating Temperature–30 °C to +60 °C (–22 °F to +140 °F)Operating Humidity? 95%Storage Temperature–30 °C to +70 °C (–22 °F to +163 °F)ProtectionIP67StructureCasingMetal + plasticDimensions227.6 mm × 204.2mm × 87.2 mm (9.0" × 8.0" × 3.4")Net Weight945 g (2.1 lb)Gross Weight1440 g (3.1 lb)
